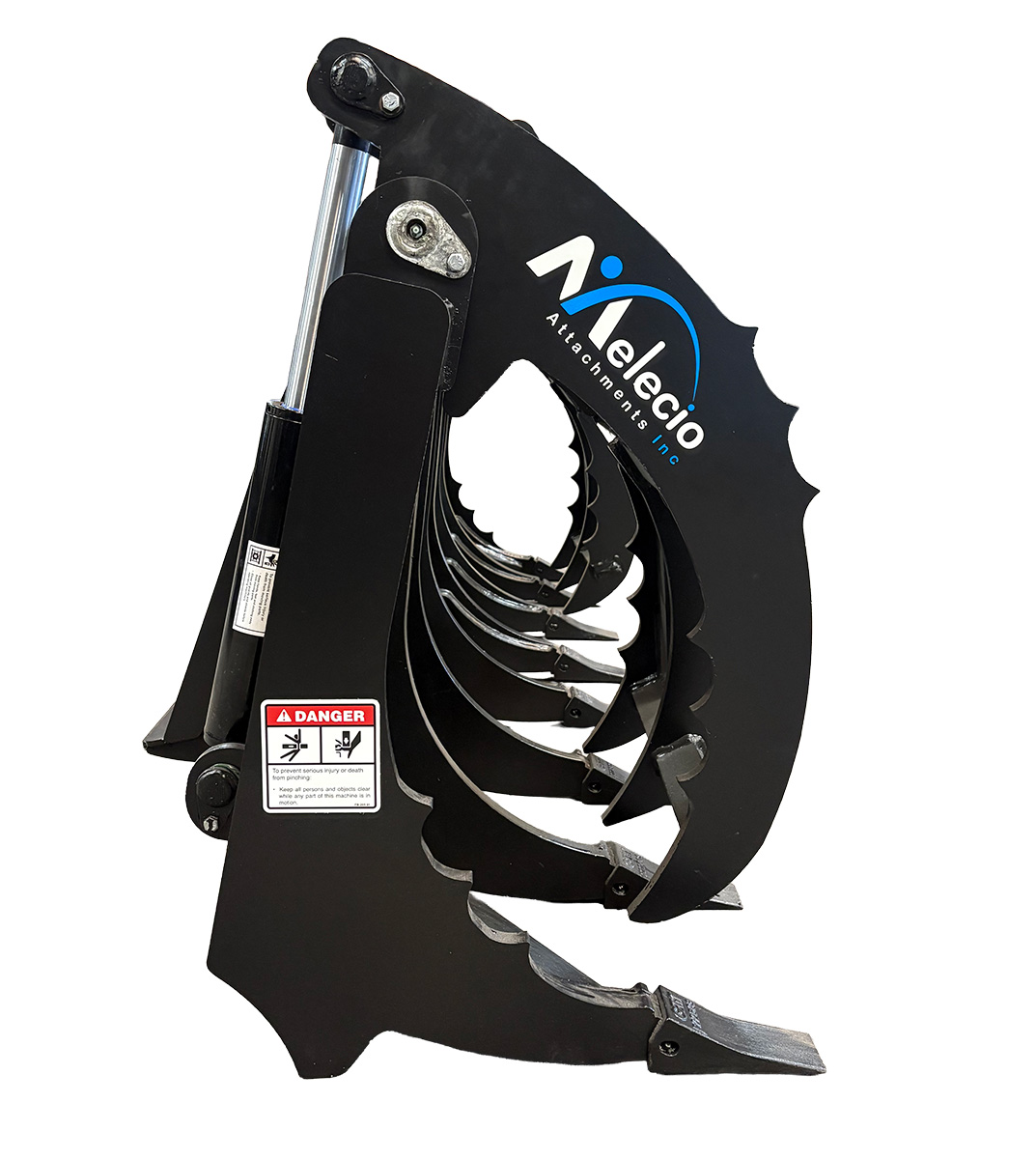

Skid-Steer Root Rake Grapple

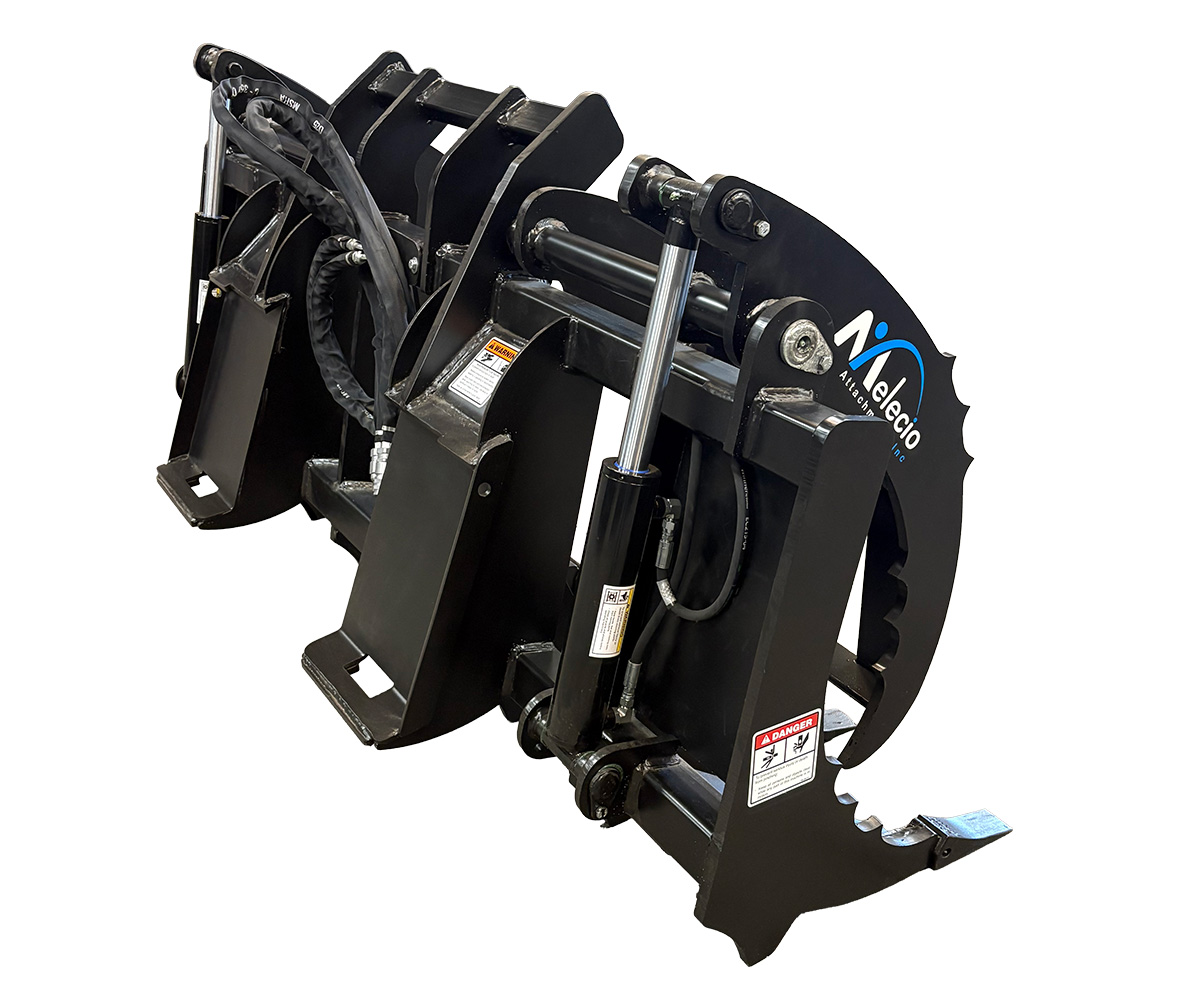

Skid-Steer Root Rake Grapple - Image 2

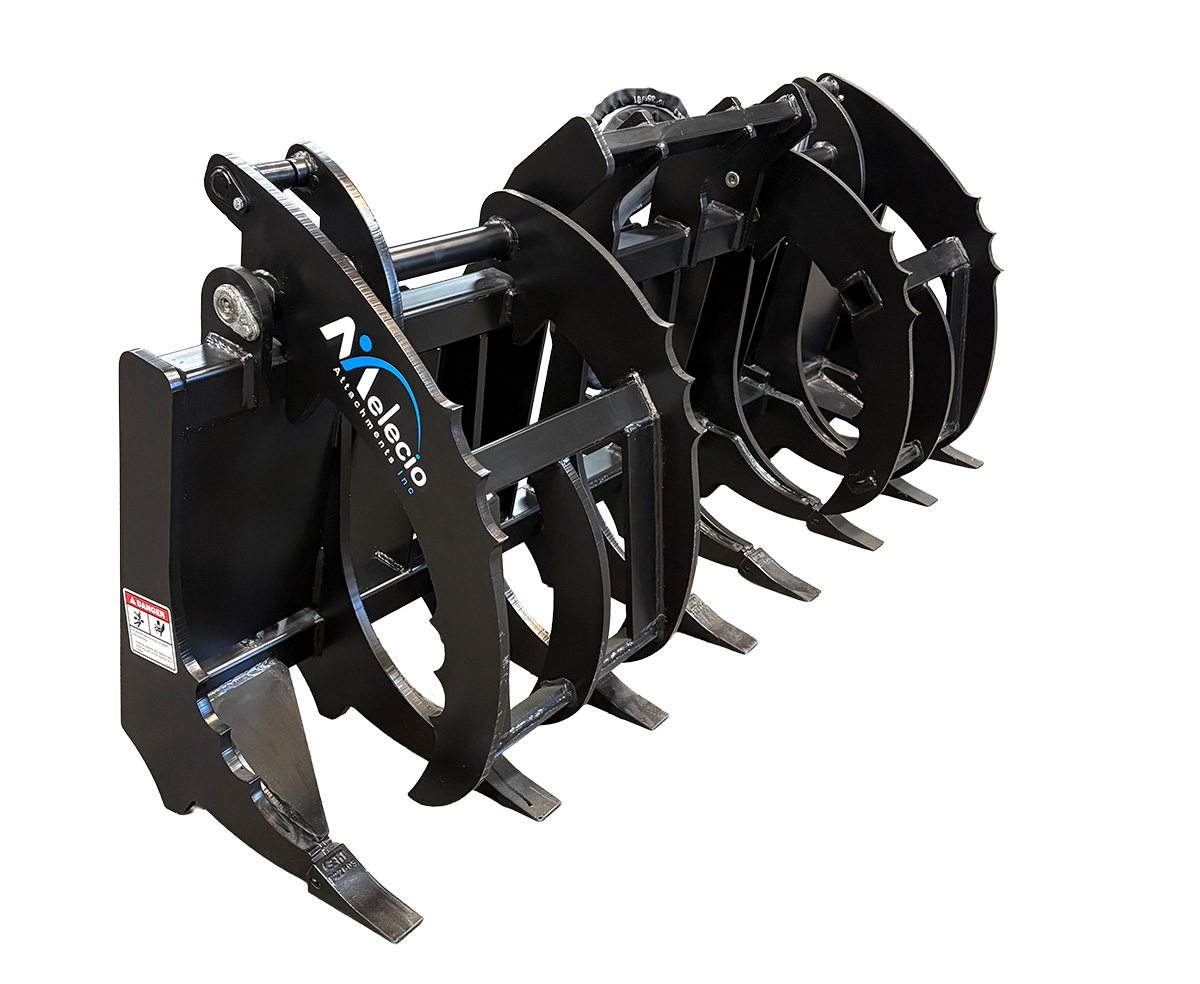

Skid-Steer Root Rake Grapple - Image 3

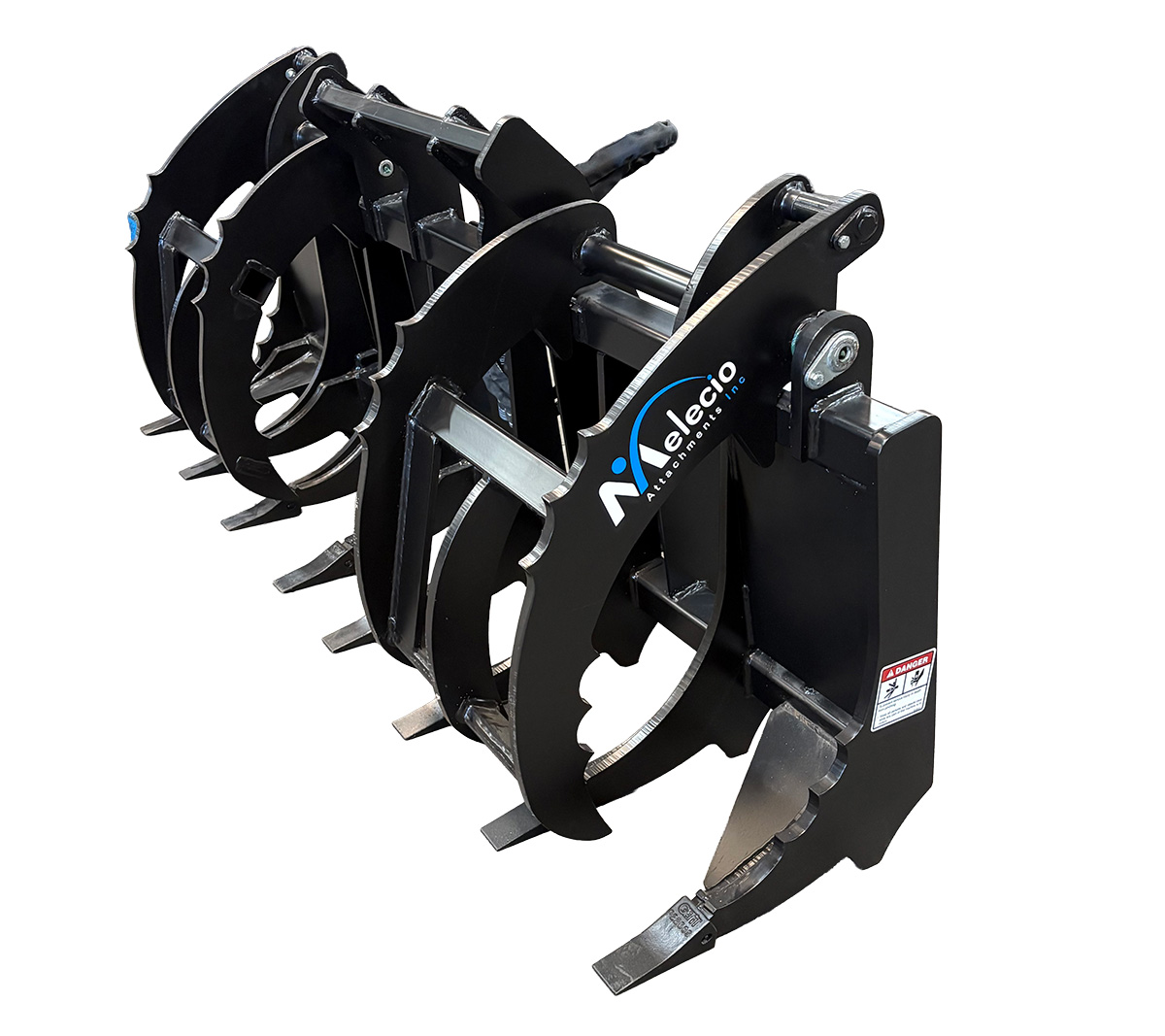

Skid-Steer Root Rake Grapple - Image 4

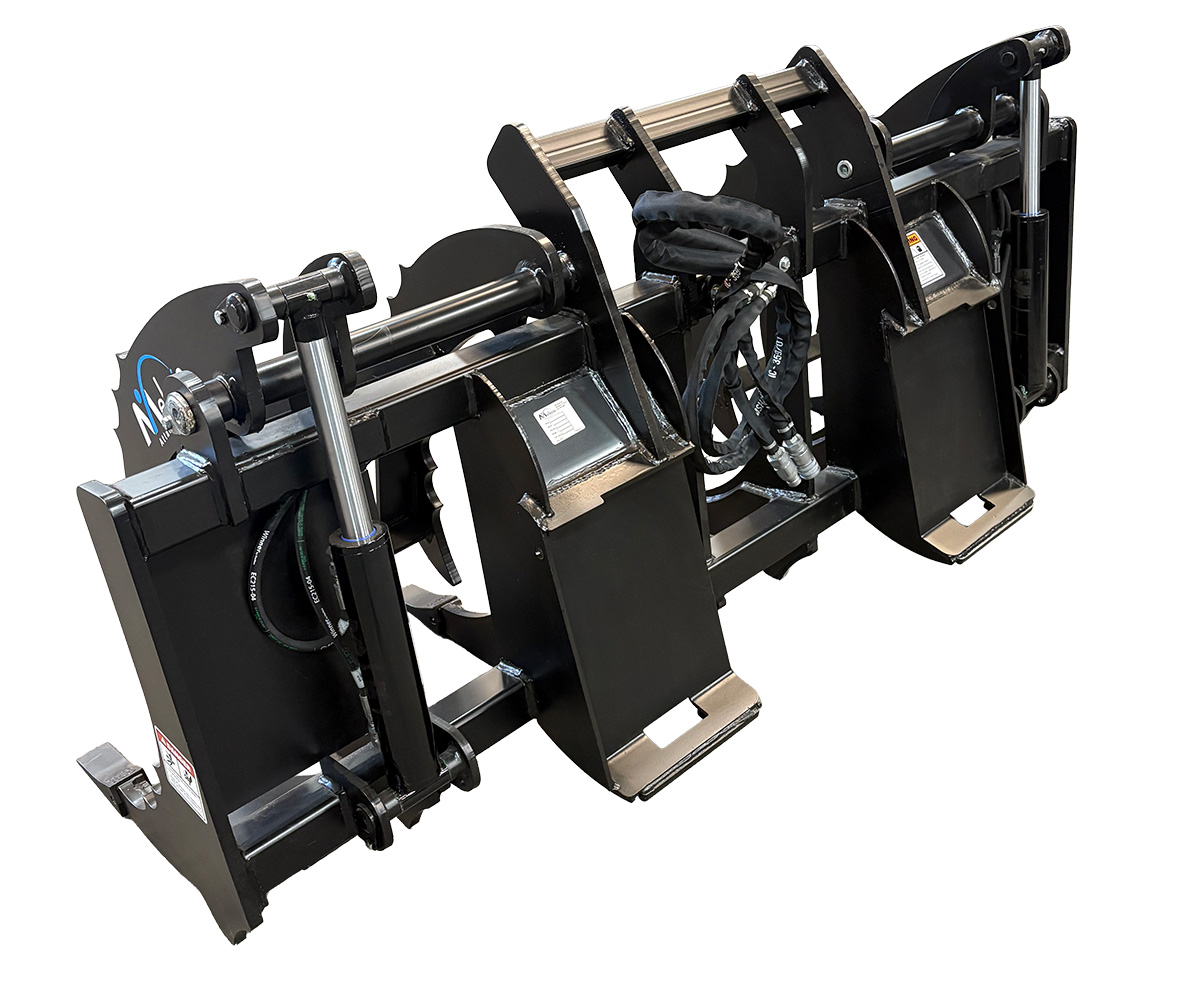

Skid-Steer Root Rake Grapple - Image 5

Skid-Steer Root Rake Grapple

Built with high-strength steel, this attachment allows you to remove the toil and leave the soil at your job site with aggressive tine and grapple profiles that lock material in place and stabilize during transport. Replaceable tine teeth and metal backing to protect the hydraulic cylinders add further durability and longevity to this versatile product. The leading edge of the grapple travels in a range of motion that pulls material into the bucket area to optimize its large capacity for brush and debris.
  • Efficient Debris Handling: The John Deere Utility Root Rake Grapple excels in grabbing, holding, and moving debris, roots, and other materials, making land clearing and landscaping tasks more efficient.
  • Quick Attach System: Designed to easily attach to equipment with a quick attach system, allowing for fast and secure installation, reducing downtime during operation.
  • Durable Construction: Built with rugged materials and strong welding for durability and longevity, ensuring it can withstand demanding work environments and heavy use.
Play Video

Built with high-strength 1/2” T1 steel, this attachment allows you to remove the toil and leave the soil at your job site with aggressive tine and grapple profiles that lock material in place and stabilize during transport. Replaceable tine teeth and metal backing to protect the hydraulic cylinders add further durability and longevity to this versatile product. The leading edge of the grapple travels in a range of motion that pulls material into the bucket area to optimize its large capacity for brush and debris

Utility Root Rake Grapple

Product Specification

Model MCO9153076 MCO9153084
Grapple Width 69.25” 69.25”
Rake Width 76″ 84”
Height 37″ 37″
Weight 890 lbs 960 lbs
Approx. Tine Spacing 10¼” 10¼”
Grapple Open 49” 49”

Built with high-strength 3/4” T1 steel, this attachment allows you to remove the toil and leave the soil at your job site with aggressive tine and grapple profiles that lock material in place and stabilize during transport. Replaceable tine teeth and metal backing to protect the hydraulic cylinders add further durability and longevity to this versatile product. The leading edge of the grapple travel in a range of motion that pulls material into the grapple area to optimize its large capacity for debris and brush.

Construction Root Rake Grapple

Product Specification

Model MCO9154076 MCO9154084
 Grapple Width 69.25” 69.25”
 Rake Width 76″ 84”
 Height 37″ 37”
 Weight 1280 lbs 1340 lbs
 Approx. Tine Spacing 10¼” 10¼”
 Grapple Open 49” 49”



This Skid Steer grapple is intended to attach to the fast attach system on your equipment. During land cleaning and landscaping chores, it efficiently captures and retains trash, roots, and other objects. Its adaptable and long-lasting design makes it a dependable alternative for a variety of jobs.

How Does Skid Steer Root Rake Grapple Works?

The John Deere Utility Root Rake Grapple works by attaching to the front of a compatible machine, such as a skid steer or compact tractor. Its strong, serrated tines penetrate and grab onto debris, roots, and other materials, allowing for easy clearing and loading. The hydraulic system provides precise control over the grapple’s movement, enabling efficient sorting and removal of debris. Its versatile design makes it ideal for landscaping, land clearing, and site preparation tasks.

Select-model-no

MCO9153076, MCO9153084, MCO9154076, MCO9154084
