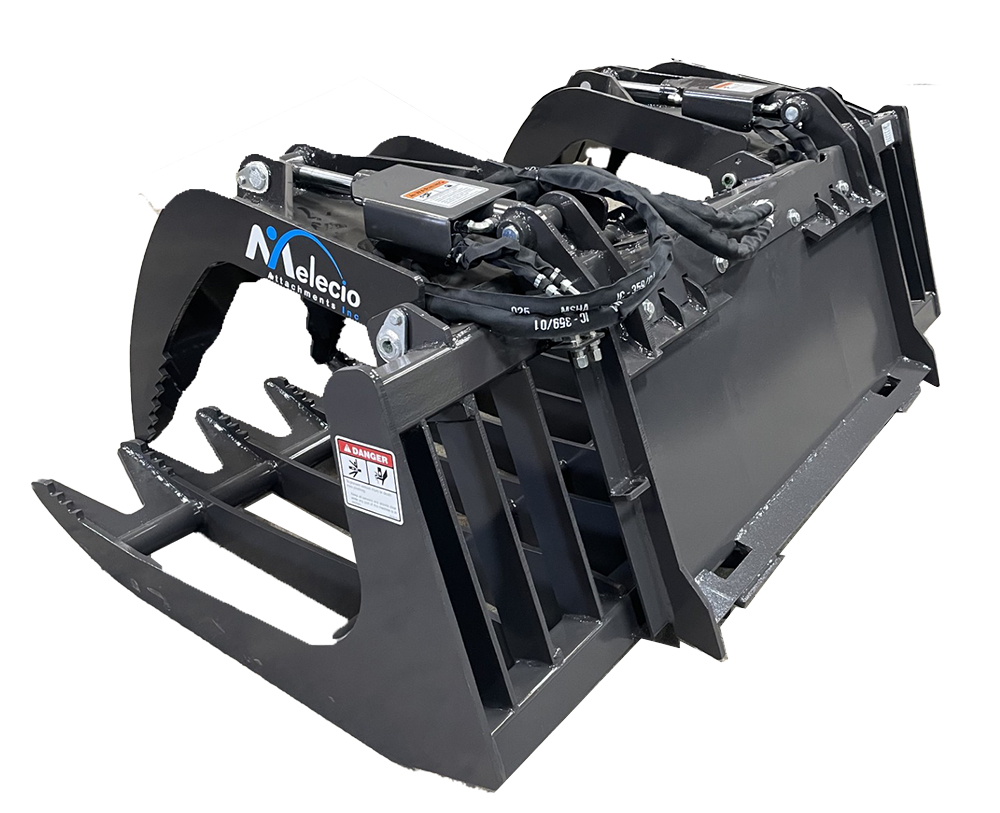

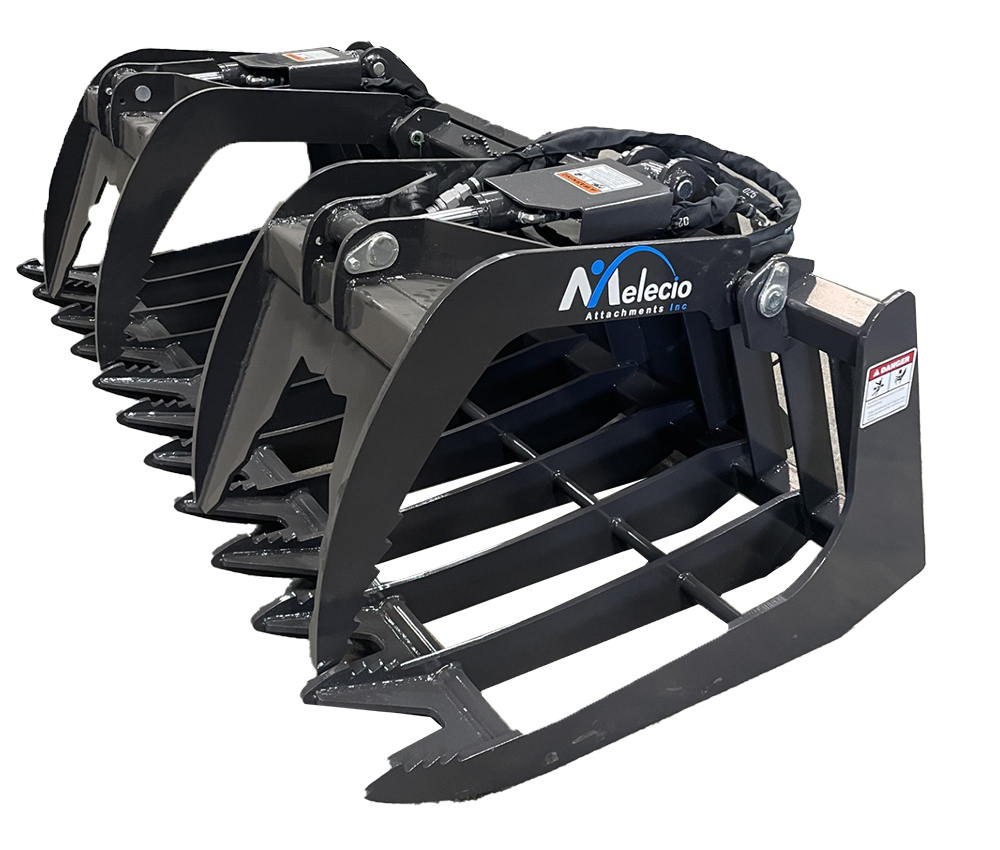

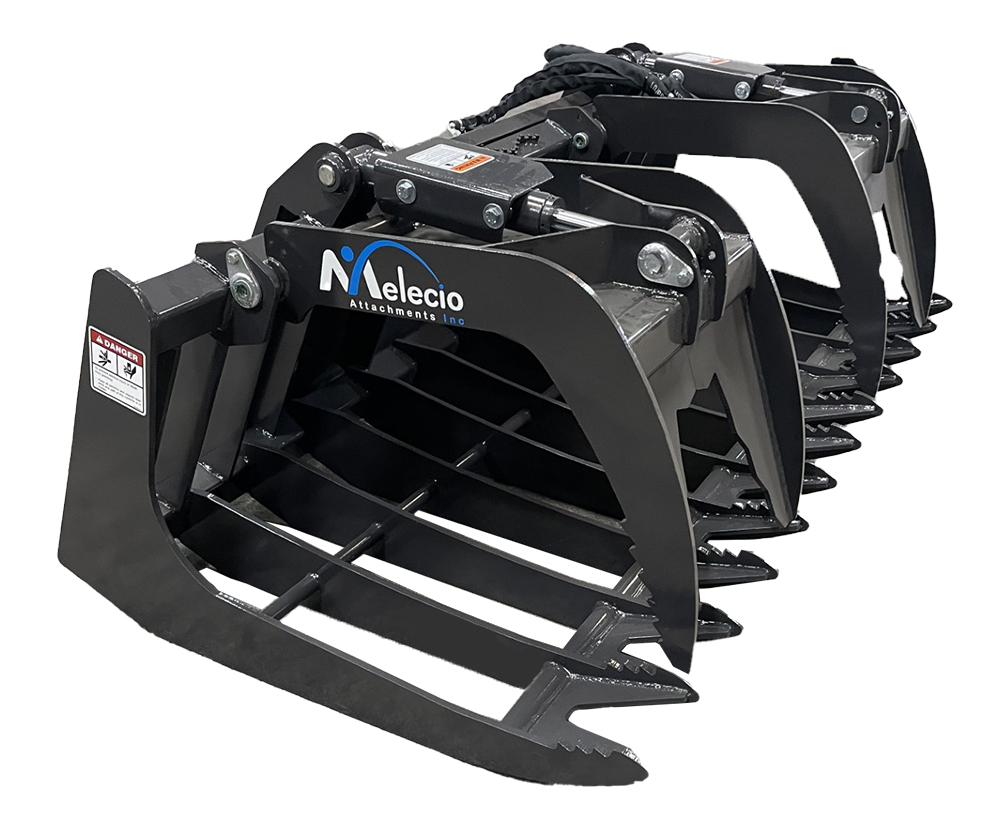

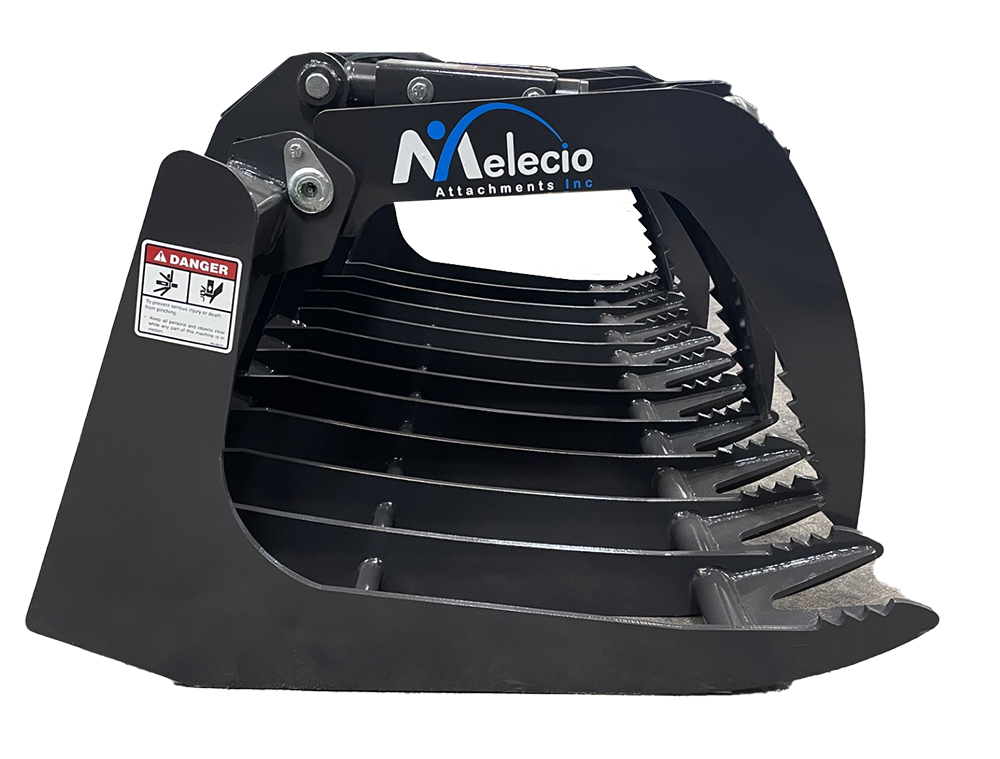

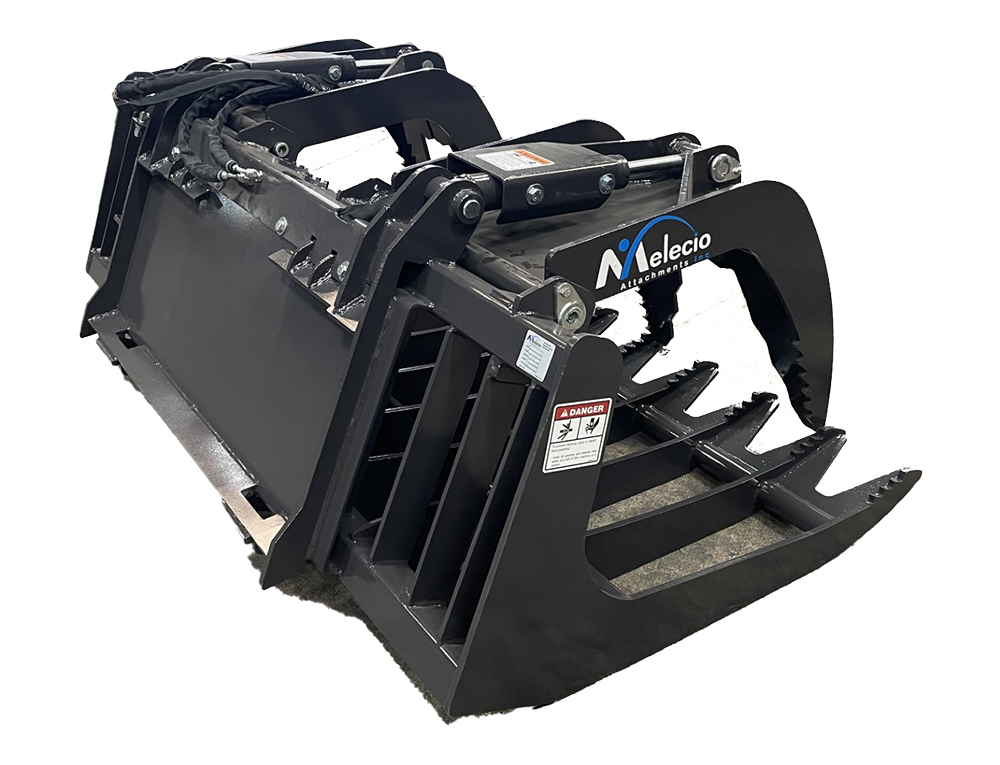

Skid Steer Brush Grapple Bucket with Curved Tips

– Utility – Curved or Tapered Tips

– Construction – Curved or Tapered Tips

– Compatible with the new Bobcat skid-steers. Grapples will clear the couplers.

Add to quote loading
Call Me Now
Categories: Buckets, Construction Attachments, Farm, Grapple Buckets
Share
  • Description
  • Reviews (0)
  • Shipping & Delivery
Description

UTILITY BRUSH GRAPPLE BUCKET

Available for light weight Compact Tractors on the 20-40hp

Made of 3/8” Grade 80 steel for longer durability, easily move logs, stumps, large rocks and other brush or cumbersome materials on your job site with this grapple bucket. With two independent grapples powered by 4000 PSI hydraulic cylinders with cylinder guards, 1 1/4” pins, and all grease-able pivot pins, this attachment will provide the versatility you need to clear brush and debris from existing and freshly cleared timber with skid-steers up to 70HP. Narrow tine spacing optional.

Model

MCO9132166

MCO9132172

MCO9132178

Weight

740 lbs

825 lbs

840 lbs

Width

66″

72″

78″

Height

22.5”

22.5″

22.5″

Depth

 37”

37″

37″

Tine Thickness

3/8″

3/8″

3/8″

Tine Spacing

6  ½ ”

6   ½ ”

6   ½ ”

Grapple Open

39”

39”

39”

Construction Brush Grapple Bucket

Recommended for skid-steers and compact tractors up to 100HP and made of ½” T1 steel for long lasting durability, this construction grade brush grapple bucket has 2 independent 4000 PSI grapples with cylinder guards to stabilize tough loads during transport.  All pins are 1 1/4” diameter and all pivot pins are grease-able. Optional narrow tine spacing available.

Model MCO9133166 MCO9133172 MCO9133178 MCO9133184
Weight

890 lbs

935 lbs

1020 lbs

1090 lbs

Width

66″

72″

78″

84”

Height

22.5”

22.5″

22.5″

22.5”

Depth

 37”

37″

37″

37”

Tine Thickness

1/2″

1/2″

1/2″

1/2″

Tine Spacing

6 ½ ”

6 ½ ”

6 ½ ”

6 ½ “

Grapple Open

39”

39”

39”

39”
