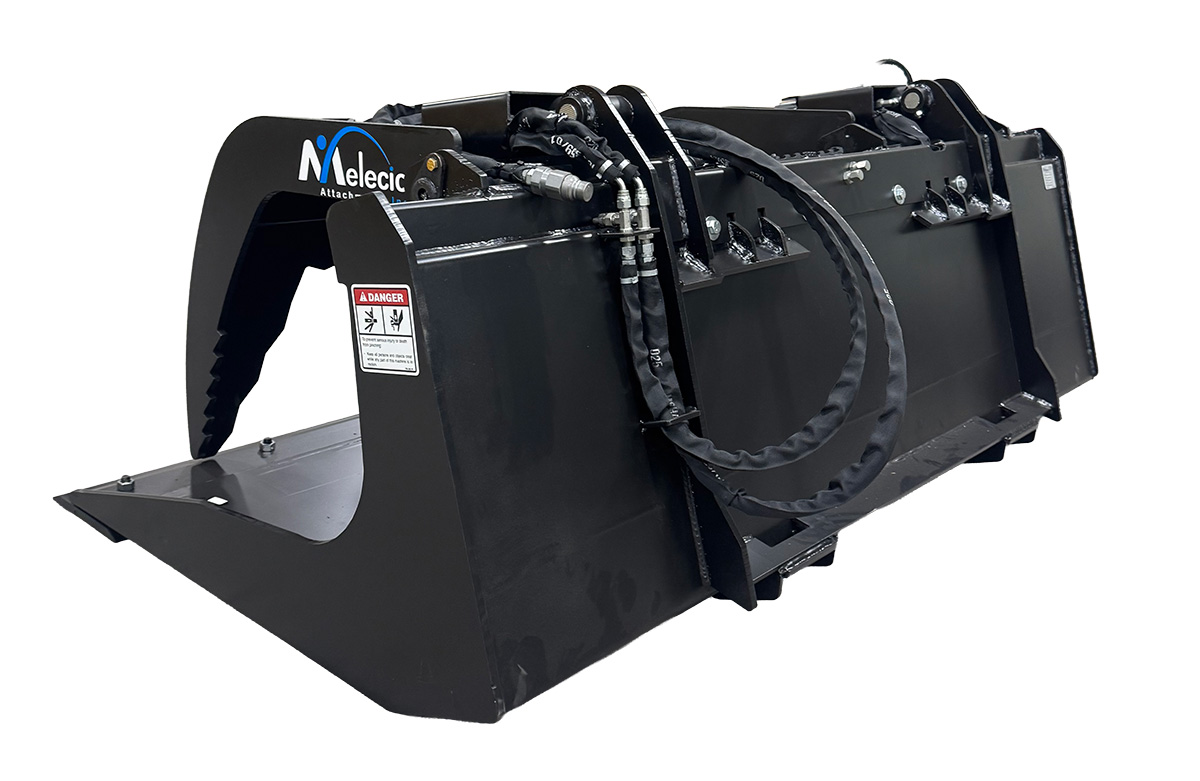

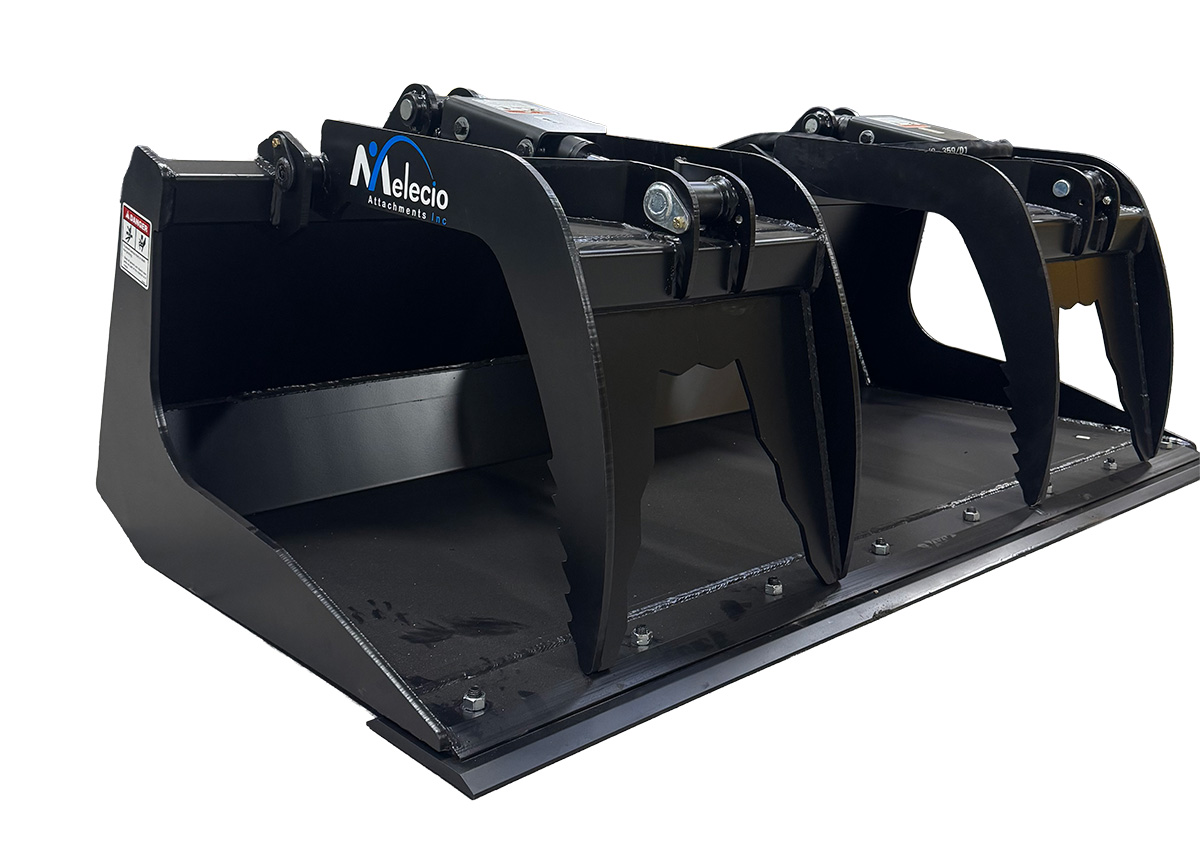

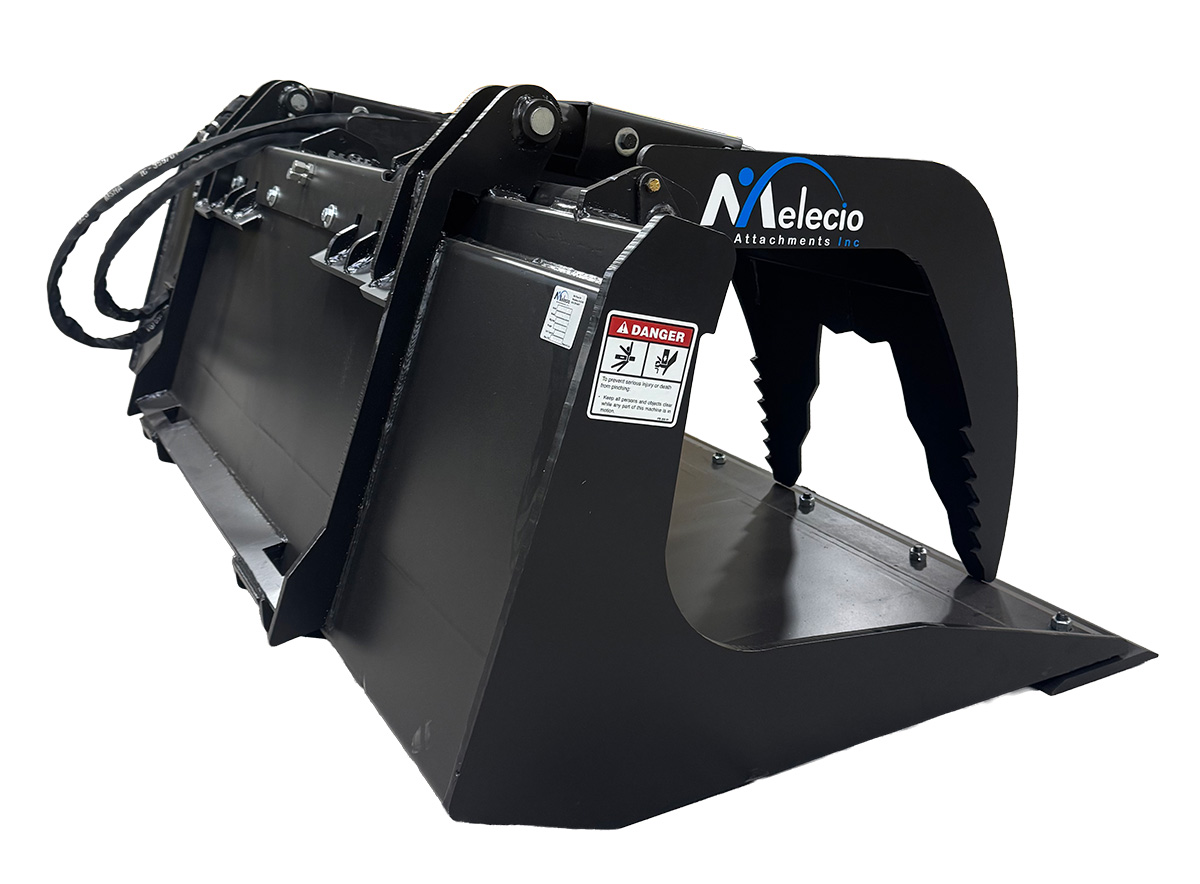

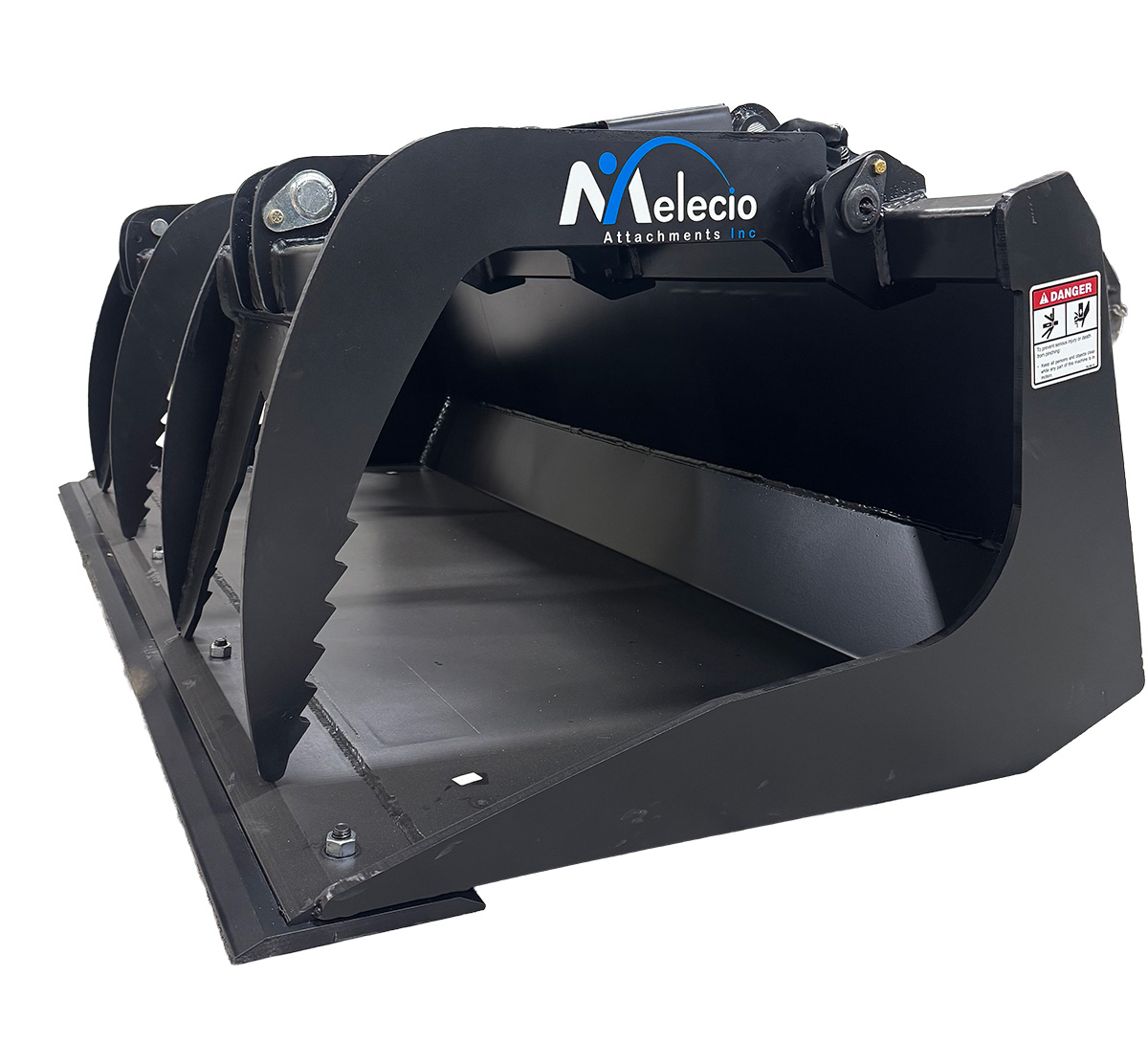

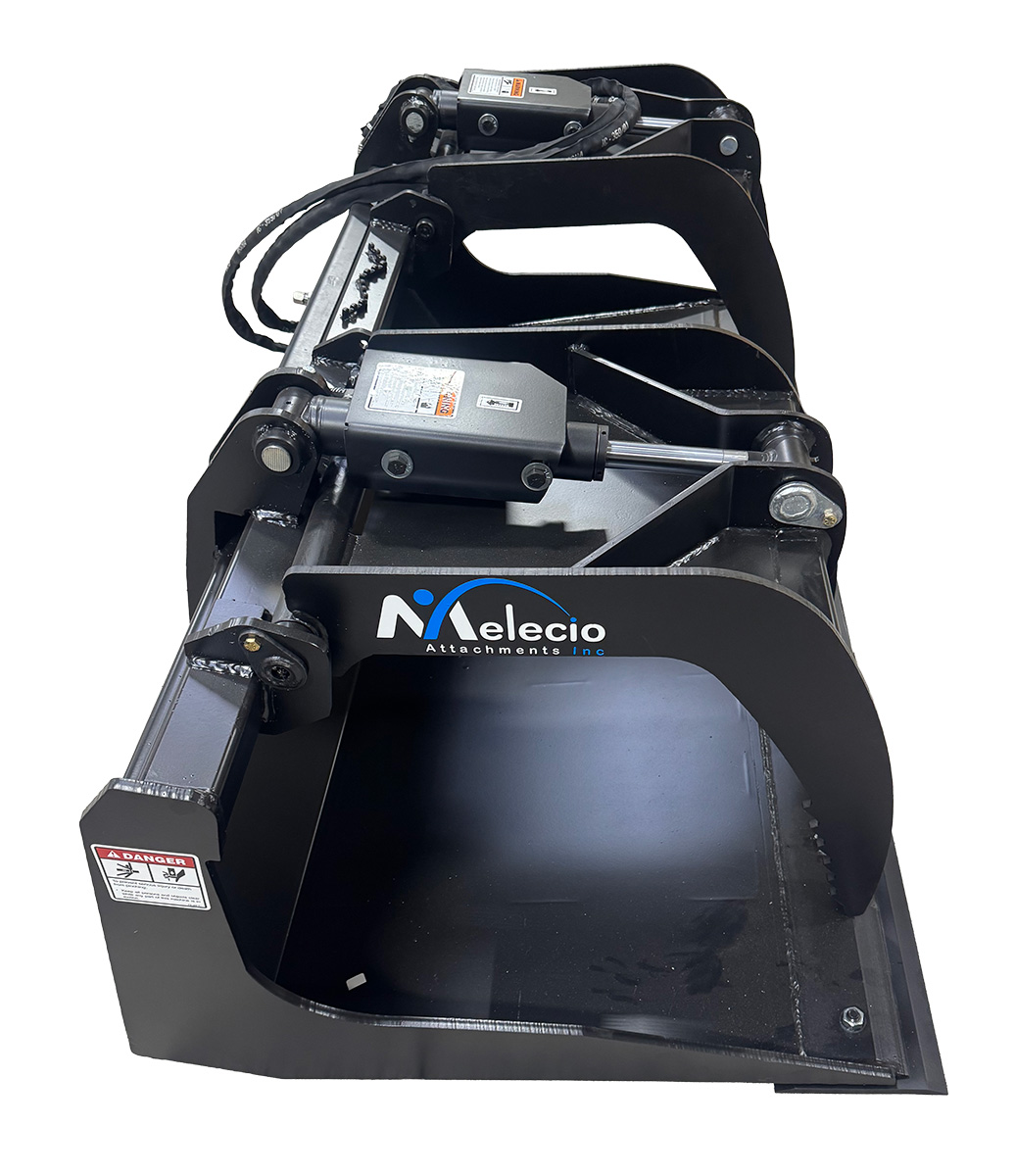

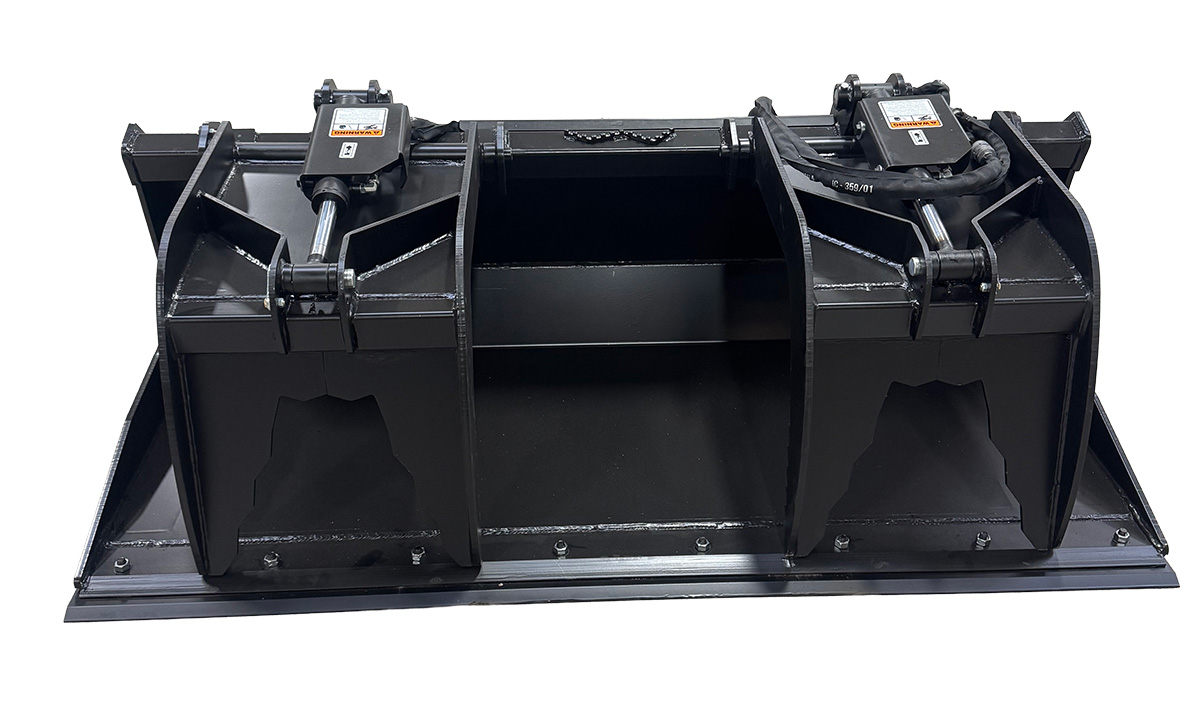

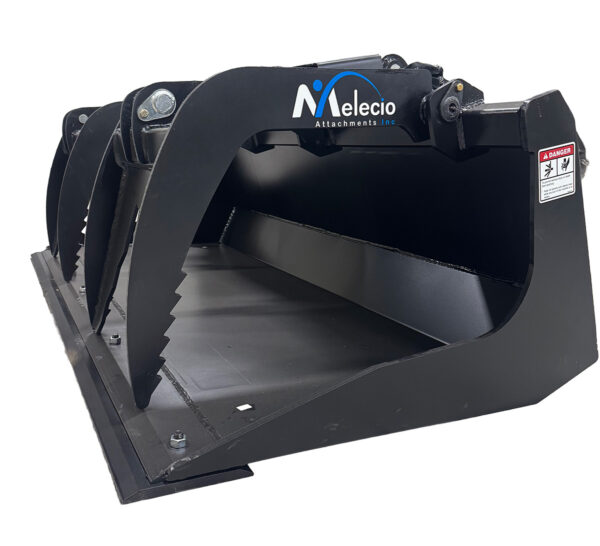

Skid-Steer Grapple Bucket

Compatible with the new Bobcat skid-steers. Grapples will clear the couplers.

Add to quote
Call Me Now
Categories: , Tags: ,
Description

UTILITY GRAPPLE BUCKET

Metal scrap removal, clearing brush and other light, yet cumbersome materials has never been easier than it is with this high-quality grapple bucket. With two independent grapples powered by 4000 PSI hydraulic cylinders, 3/4” x 6”edge with holes for optional bolt on edge, cylinder guards, 1 1/4” pins, and all grease-able pivot pins, this attachment is built to last on the toughest of job sites. Built with 3/8″ high-strength steel with a 3/16″ bucket wrapper for long lasting durability. Compatible with the new bob cat skid steers and John Deere skid steers.

Model MCO9142066 MCO9142072 MCO9142078
Width 66” 72” 78”
Depth 36” 36” 36”
Height 22” 22” 22”
Weight 910 lbs 960 lbs 985 lbs
Grapple Open 39” 39” 39”



HEAVY DUTY GRAPPLE BUCKET

Built with 1/2” high-strength steel with a 1/4” bucket wrapper for long lasting durability, this heavy duty grapple bucket is equipped with two 4000 PSI independent grapples with cylinder guards, 1/2” x 4” wear bars, all grease-able pivot pins and optional bolt-on edge. This grapple is perfect for Skid-Steers and Compact Wheel Loaders over 100HP.

Model MCO9143066 MCO9143072 MCO9143078 MCO9143084
Width 66” 72” 78” 84”
Depth 36” 36” 36” 36”
Height 22” 22” 22” 22”
Weight 1095 lbs 1135 lbs 1195 lbs 1200 lbs
Grapple Open 39” 39” 39” 39”
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Skid-Steer Grapple Bucket”

Your email address will not be published. Required fields are marked *

Shipping & Delivery

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

  • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
  • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
  • Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

ADDITIONAL INFORMATION

UTILITY GRAPPLE BUCKET

Metal scrap removal, clearing brush and other light, yet cumbersome materials has never been easier than it is with this high-quality grapple bucket. With two independent grapples powered by 4000 PSI hydraulic cylinders, 3/4” x 6”edge with holes for optional bolt on edge, cylinder guards, 1 1/4” pins, and all grease-able pivot pins, this attachment is built to last on the toughest of job sites. Built with 3/8" high-strength steel with a 3/16" bucket wrapper for long lasting durability. Compatible with the new bob cat skid steers and John Deere skid steers.
Model MCO9142066 MCO9142072 MCO9142078
Width 66” 72” 78”
Depth 36” 36” 36”
Height 22” 22” 22”
Weight 910 lbs 960 lbs 985 lbs
Grapple Open 39” 39” 39”


HEAVY DUTY GRAPPLE BUCKET

Built with 1/2” high-strength steel with a 1/4” bucket wrapper for long lasting durability, this heavy duty grapple bucket is equipped with two 4000 PSI independent grapples with cylinder guards, 1/2” x 4” wear bars, all grease-able pivot pins and optional bolt-on edge. This grapple is perfect for Skid-Steers and Compact Wheel Loaders over 100HP.
Model MCO9143066 MCO9143072 MCO9143078 MCO9143084
Width 66” 72” 78” 84”
Depth 36” 36” 36” 36”
Height 22” 22” 22” 22”
Weight 1095 lbs 1135 lbs 1195 lbs 1200 lbs
Grapple Open 39” 39” 39” 39”


Related products

bobcat grapple bucket
bobcat grapple bucket
Close

Bobcat Grapple Bucket

Bobcat grapple buckets from Melecio Attachments Inc. are the ideal piece of machinery for a variety of applications, notably those in the residential, agricultural, and construction industries. Here, we have a wide range of designs in sizes to fit compact tractors and skid steers with small to large frames. The purpose of the Bobcat grapple bucket is to gather materials and trash. The material is then secured in the bucket for removal.
Quick view
Close

72″ Tooth Bar for Buckets

You will need to drill one matching hole on each end of the buckets sidewall and bolt the Toothbar on with 5/8" or 3/4" diameter bolts - length as required. This Toothbar will work ONLY on buckets with weld-on cutting edges! We have Toothbars for bolt-on cutting edges available to list on our eBay Store, but we will need dimensions for fabrication and pricing to provide us with the required dimensions we have different size's available. This is a very heavy duty Toothbar, good for buckets on tractors or skid-steers. They make a dramatic improvement in digging and clean up of all types of material, multiplying the work of the tractor and the bucket! They will pay for themselves quickly! Weighs about 90 lbs.
Quick view
Close

Small Wheel Loader Grapple Bucket

Metal scrap removal, clearing brush and other light, yet cumbersome materials has never been easier than it is with this high-quality grapple bucket. With two independent grapples made of high-strength abrasion-resistant steel with a wrapper, this attachment is built to last on the the toughest of job sites.
Quick view
Close

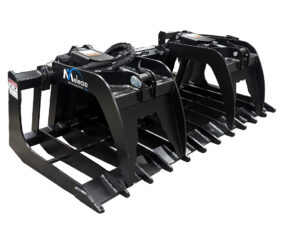

Skid Steer Tapered Brush Grapple Bucket
