Skid-Steer Tine Grapple Bucket

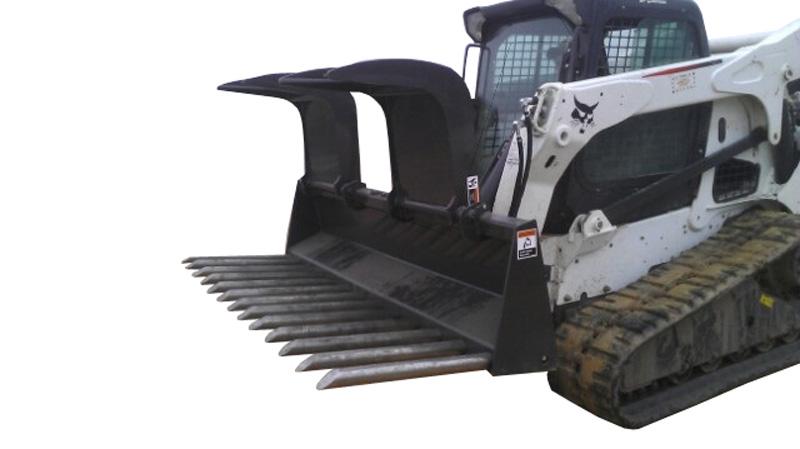

HEAVY DUTY SKID-STEER TINE GRAPPLE BUCKET

This tine grapple bucket is designed for skid-steer and wheel loader models over 100 HP. With two independent grapples powered by 4000 PSI hydraulic cylinders, 1 1/4” pins, and all grease-able pivot pins. This attachment is built for long lasting durability. Tines are 2 1/4” diameter from C1045.

Add to quote
Call Me Now
Categories: , Tag:
Description
Model MCO9112066 MCO9112072 MCO9113084
Weight

1255 lbs

1300 lbs

1340 lbs
Width

66″

72″

84″
Height

22.5”

22.5″

22.5″
Depth

 32”

32″

32″
Tine Thickness

2 ¼”

2 ¼”

2 ¼”
# of Tines

10

11

13
Grapple Open

39”

39”

39”
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Skid-Steer Tine Grapple Bucket”

Your email address will not be published. Required fields are marked *

Shipping & Delivery

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

  • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
  • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
  • Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

ADDITIONAL INFORMATION

Related products

Close

Skid-Steer Manure Fork

Constructed with a high-strength steel bucket shell and 28” usable tine length, this manure fork will make cleanup quick and easy. 1 3/4” diameter replaceable tines made of C1045 round steel spaced at 9” on center allow for maximum capacity and material handling capability minimizing your time on the job. Can be made for quick attach or pin. Optional Grapple
Quick view
Close

Skid-Steer Rock Grapple Bucket

SKID-STEER ROCK GRAPPLE BUCKET
  • Utility
  • Heavy Duty
  • Compatible with the new Bobcat skid-steers. Grapples will clear the couplers.
Quick view
Close

Skid-Steer Root Rake Grapple

UTILITY ROOT RAKE GRAPPLE Built with high-strength 1/2” T1 steel, this attachment allows you to remove the toil and leave the soil at your job site with aggressive tine and grapple profiles that lock material in place and stabilize during transport. Replaceable tine teeth and metal backing to protect the hydraulic cylinders add further durability and longevity to this versatile product. The leading edge of the grapple travels in a range of motion that pulls material into the bucket area to optimize its large capacity for brush and debris. This Root Rake Grapple is also available for John Deere.
Quick view
Close

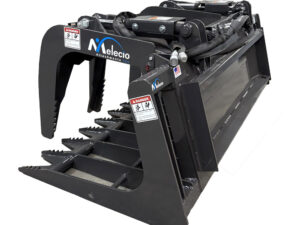

Small Wheel Loader Brush Grapple Bucket
