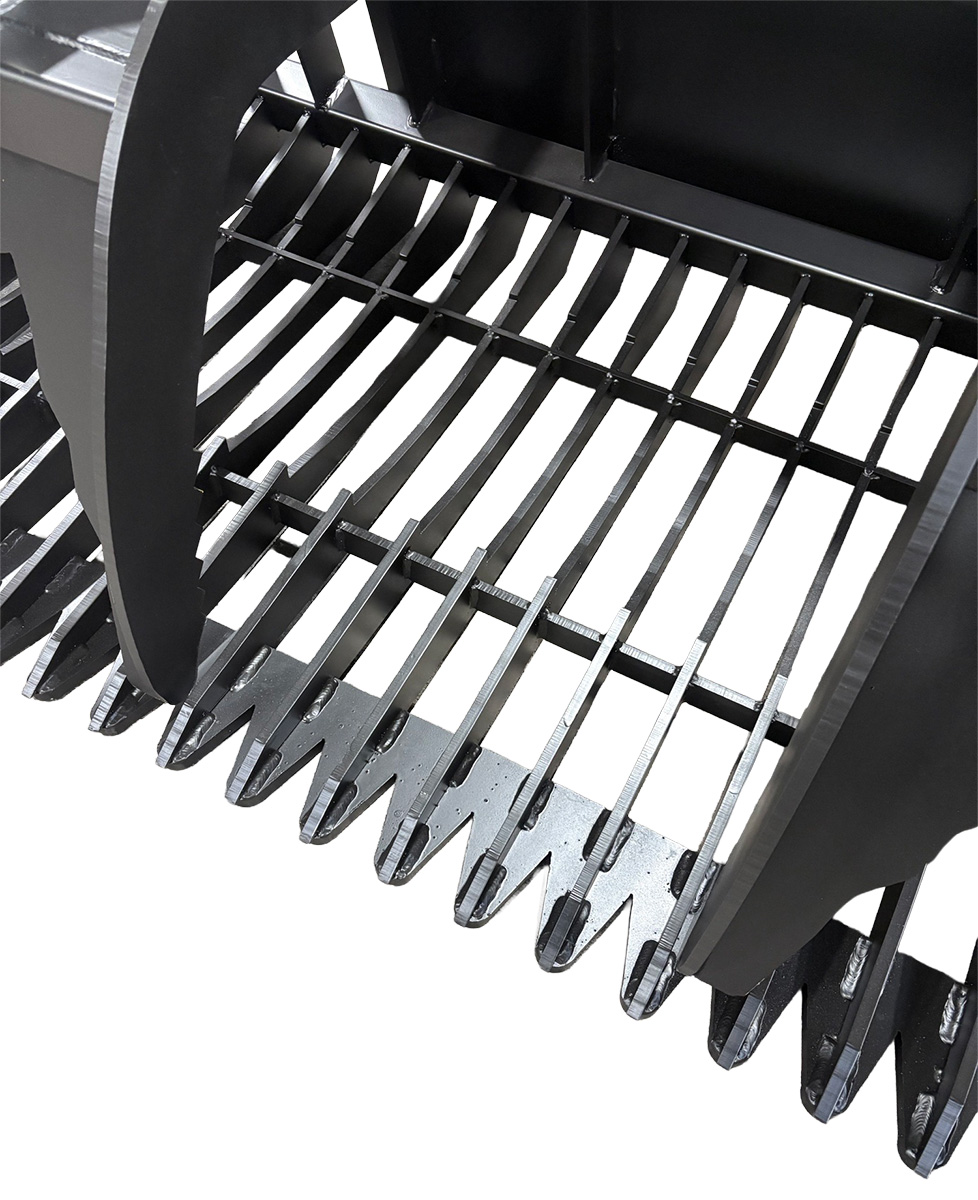

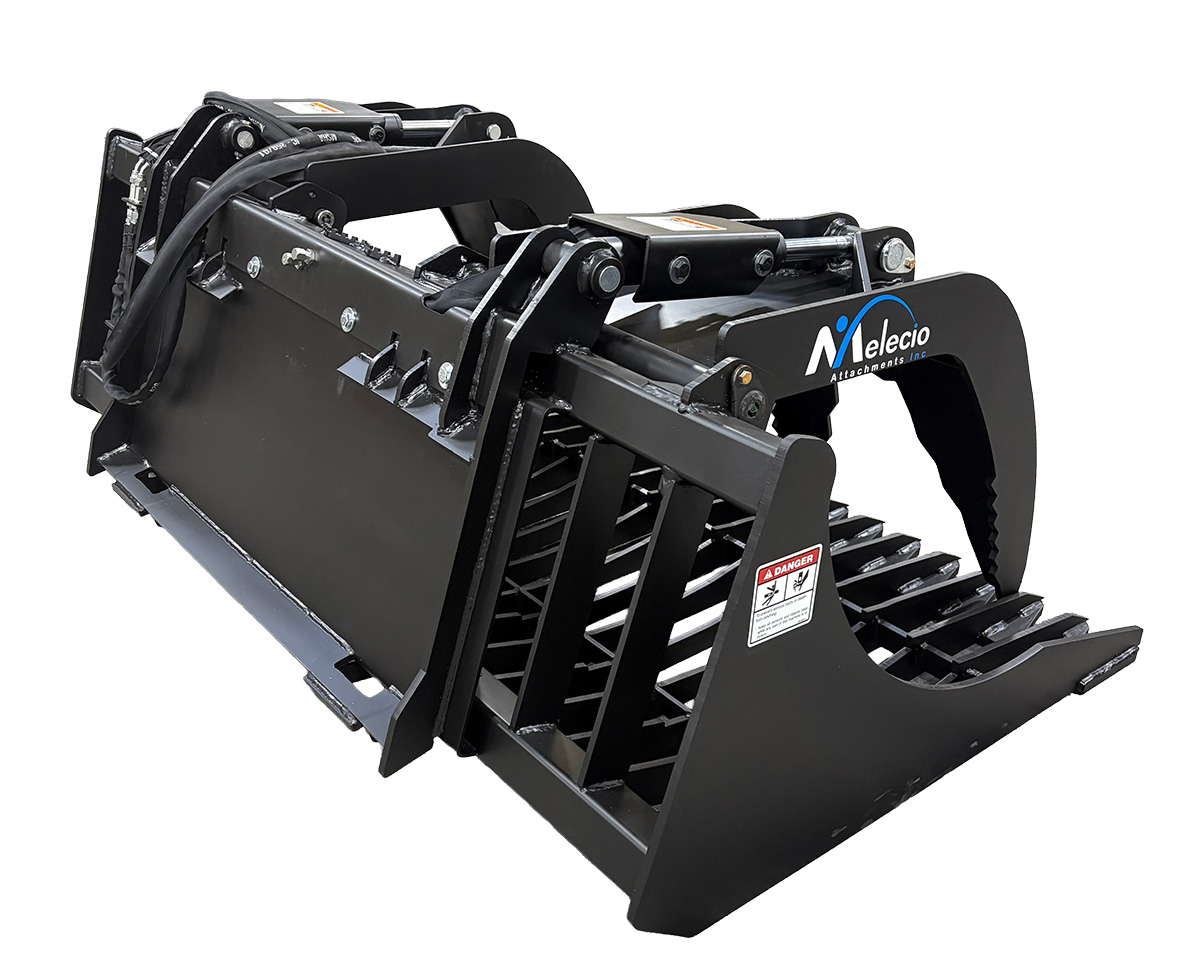

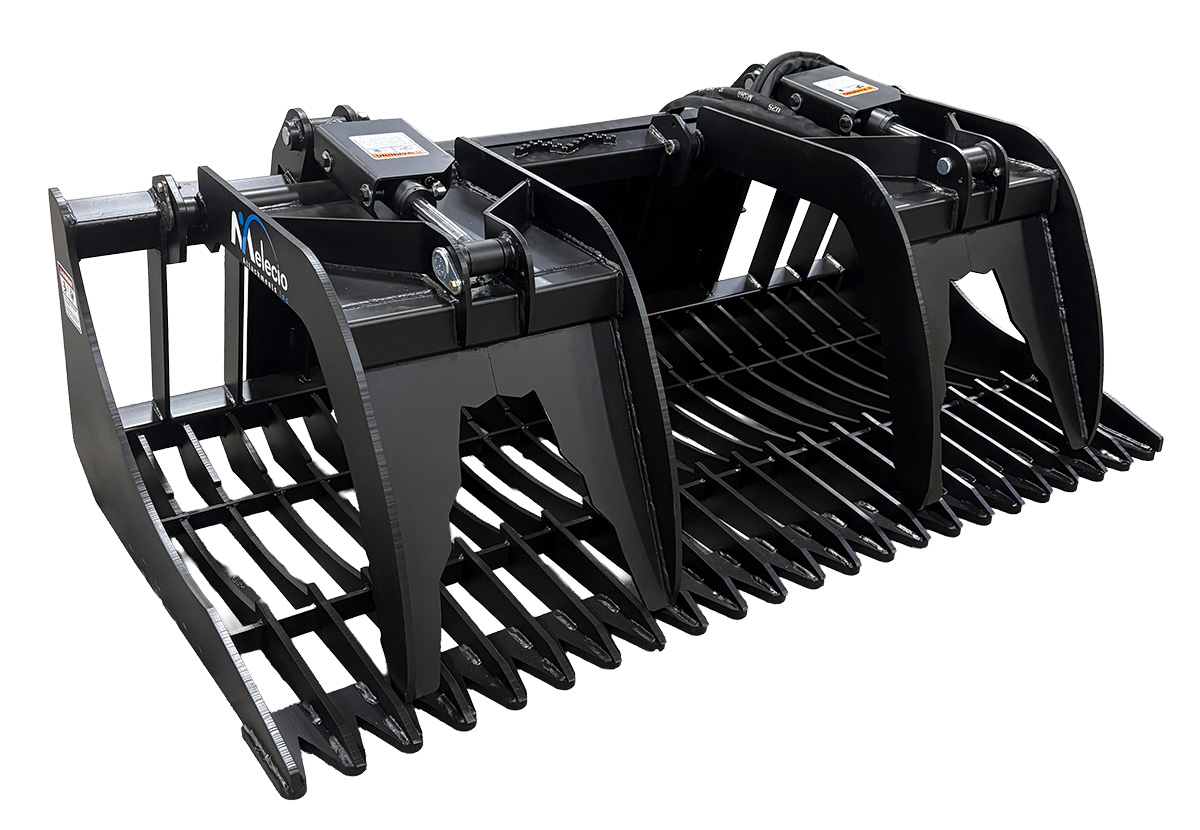

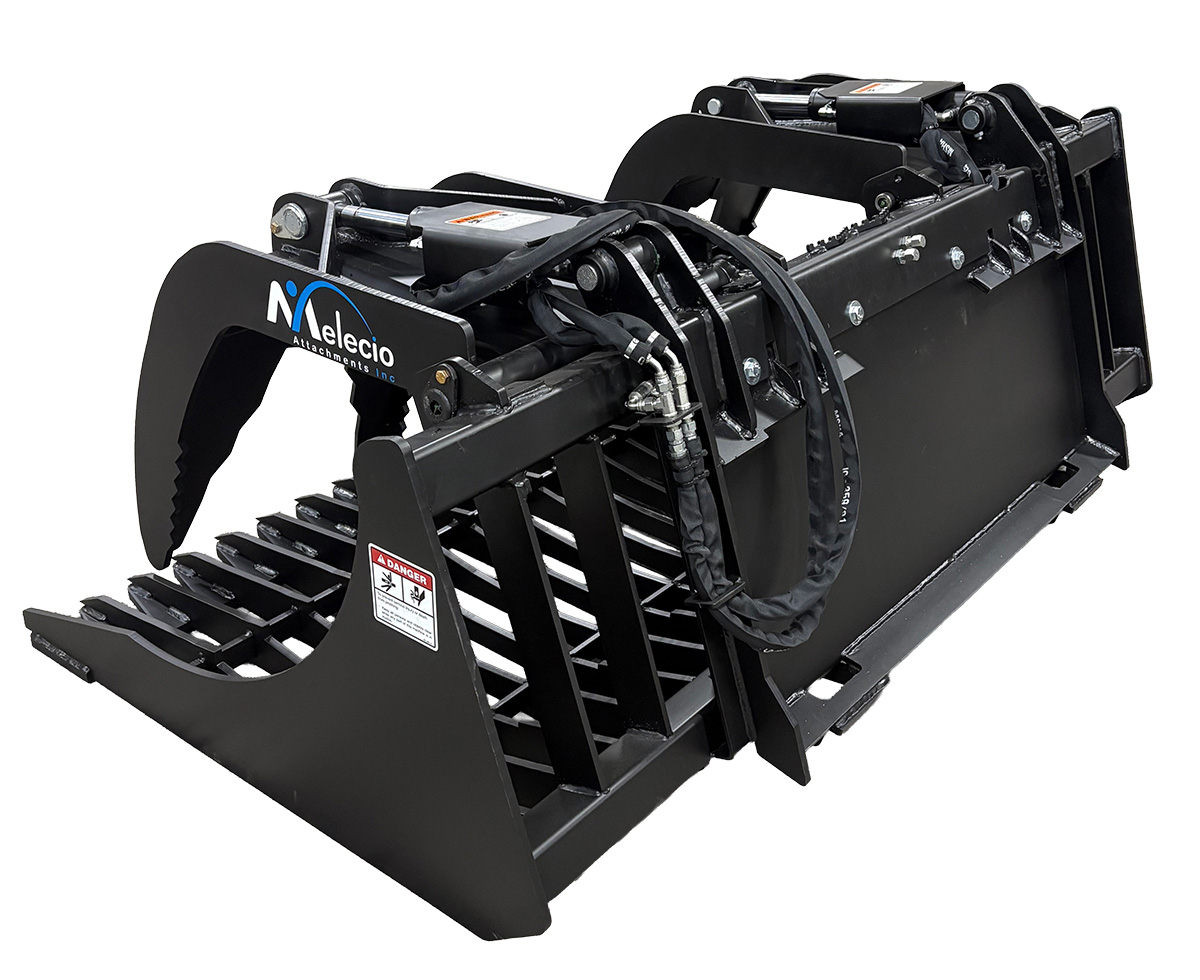

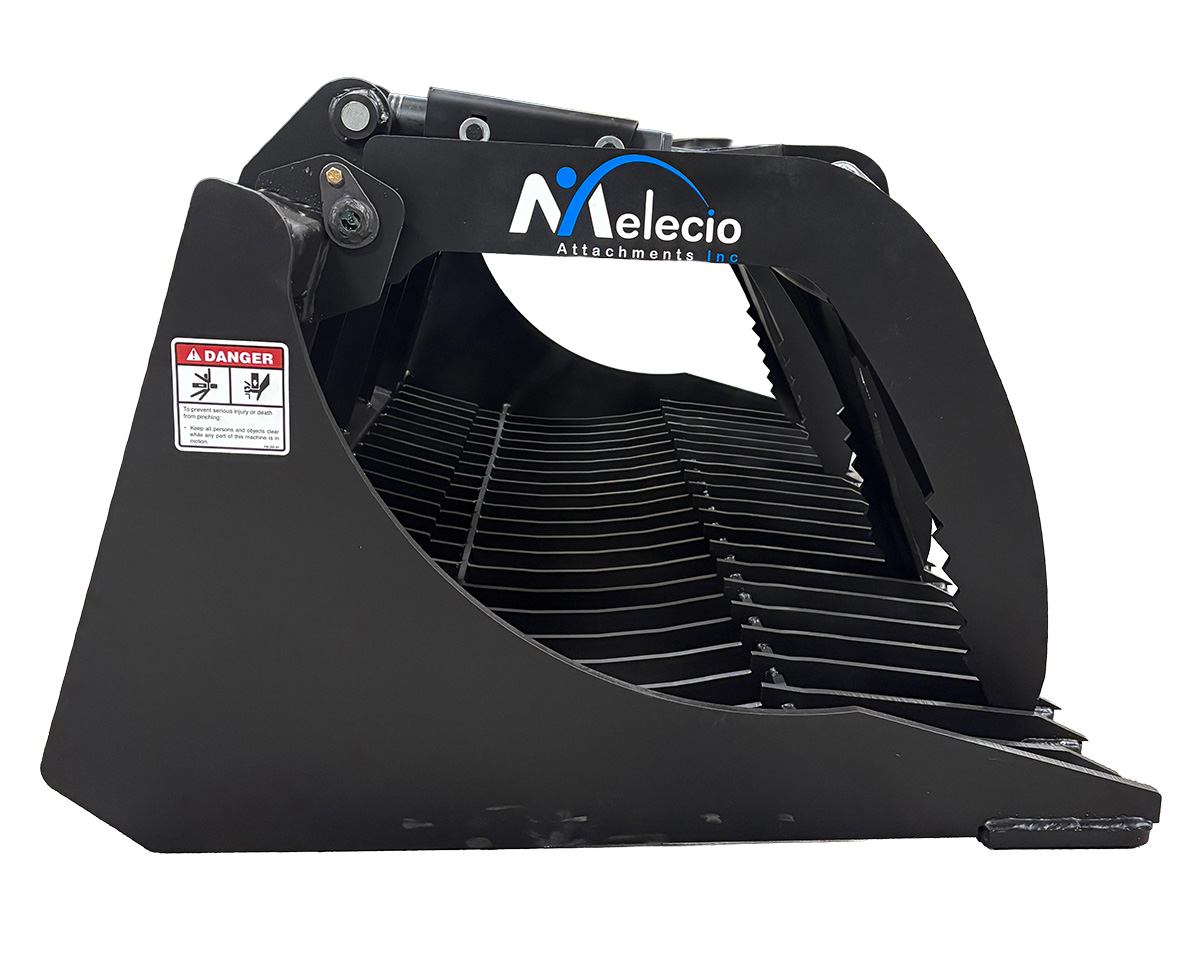

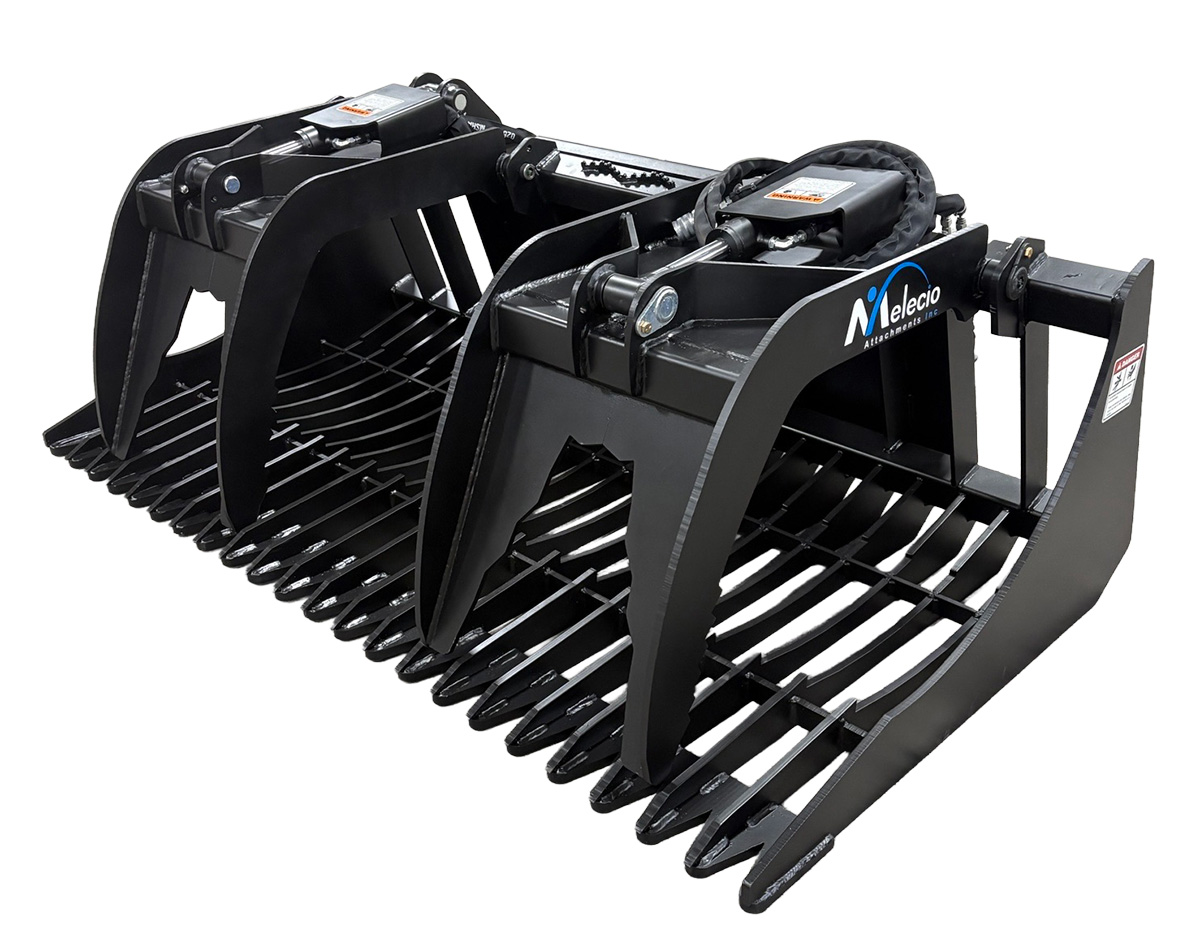

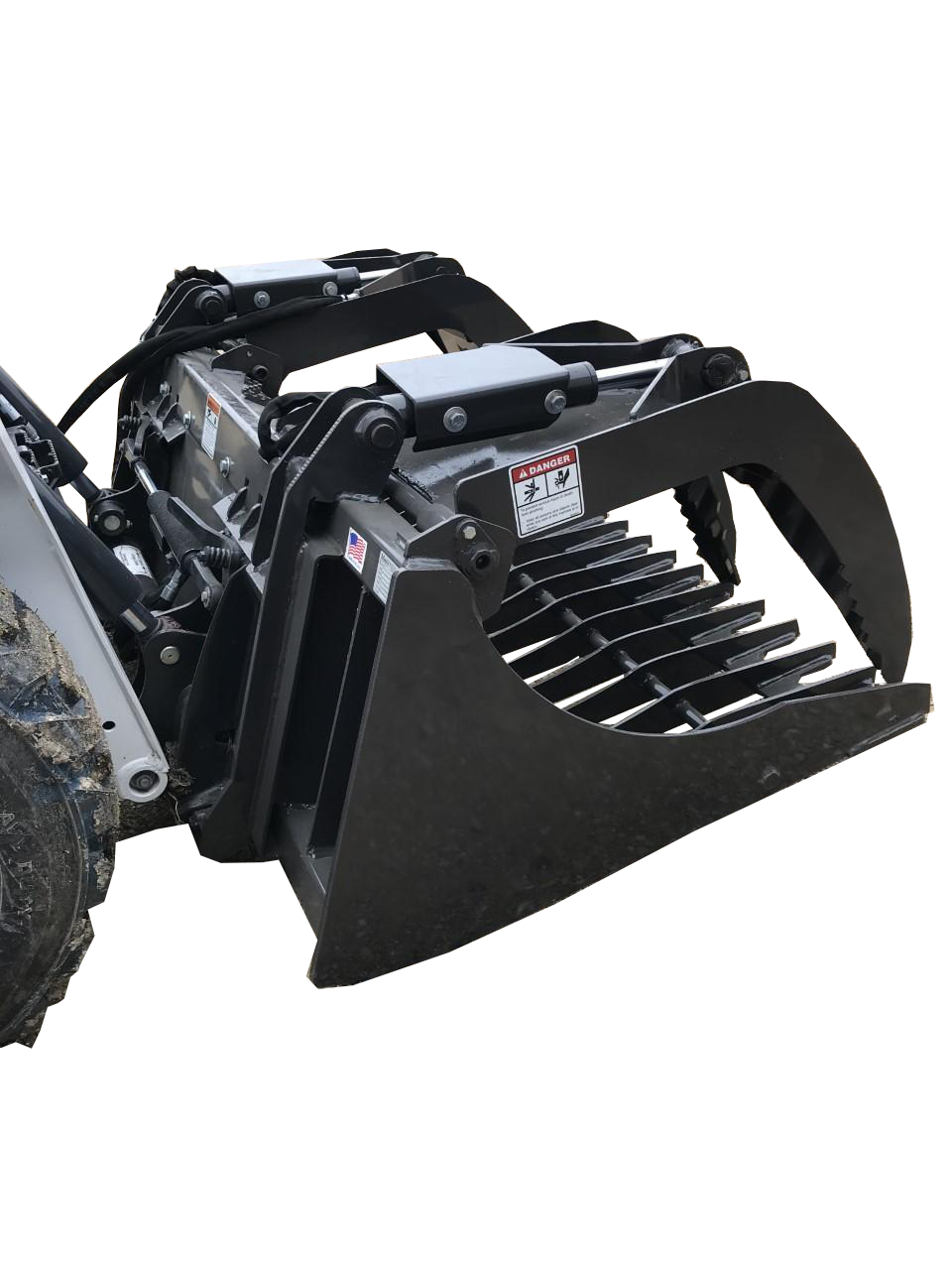

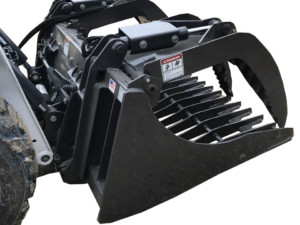

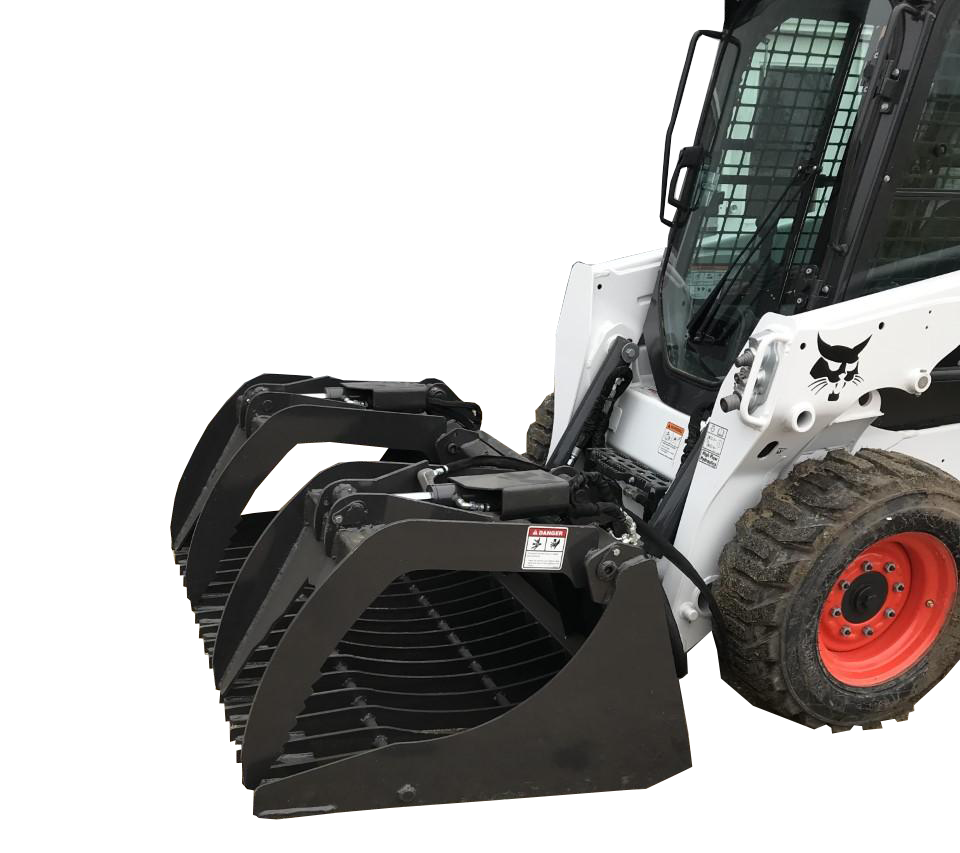

Skid-Steer Rock Grapple Bucket

SKID-STEER ROCK GRAPPLE BUCKET

  • Utility
  • Heavy Duty
  • Compatible with the new Bobcat skid-steers. Grapples will clear the couplers.

Add to quote loading
Call Me Now
Categories: Construction Attachments, Grapple Buckets, Skid Steer Attachments Tag: Specification Table
Share
  • Description
  • Reviews (0)
  • Shipping & Delivery
  • ADDITIONAL INFORMATION
Description

Utility Skid-Steer Rock Grapple Bucket

Built with 3/8” T1 high-strength steel for long lasting durability, this attachment makes sifting through sand, dirt, and gravel easy. With 1 1/4” diameter pins, grease-able pivot points, and two independent grapples powered by 4000PSI hydraulic cylinders with cylinder guards, this attachment is the perfect fit for landscaping jobs, nurseries, construction sites, farms, and land clearing, etc.



Model MCO9122066 MCO9122072 MCO9122078
Weight

710 lbs

848 lbs

955 lbs

Width

66″

72″

78″

Height

24”

24″

24″

Depth

 42”

42″

42″

Tine Thickness

3/8

3/8

3/8

Tine Spacing

3”

3”

3”

Grapple Open

40”

40”

40”

HEAVY DUTY SKID-STEER ROCK GRAPPLE BUCKET

Built with 1/2” T1 high-strength steel for long lasting durability, this attachment makes sifting through sand, dirt, and gravel easy. With 1 1/4” diameter pins, grease-able pivot points, and two independent grapples powered by 4000 PSI hydraulic cylinders with cylinder guards, this attachment is the perfect fit for landscaping jobs, nurseries, construction sites, farms, and land clearing, etc.

Model

MCO9122H66

MCO9122H72

MCO9123H78

MCO9123H84

Weight

880 lbs

948 lbs

1055 lbs

1140 lbs

Width

66″

72″

78″

84″

Height

24”

24″

24″

24″

Depth

 42”

42″

42″

42″

Tine Thickness

1/2

1/2

1/2

1/2

Tine Spacing

3”

3”

3”

3”

Grapple Open

40”

40”

40”

40”
