Built with high-strength 1/2” T1 steel, this attachment allows you to remove the toil and leave the soil at your job site with aggressive tine and grapple profiles that lock material in place and stabilize during transport. Replaceable tine teeth and metal backing to protect the hydraulic cylinders add further durability and longevity to this versatile product. The leading edge of the grapple travels in a range of motion that pulls material into the bucket area to optimize its large capacity for brush and debris

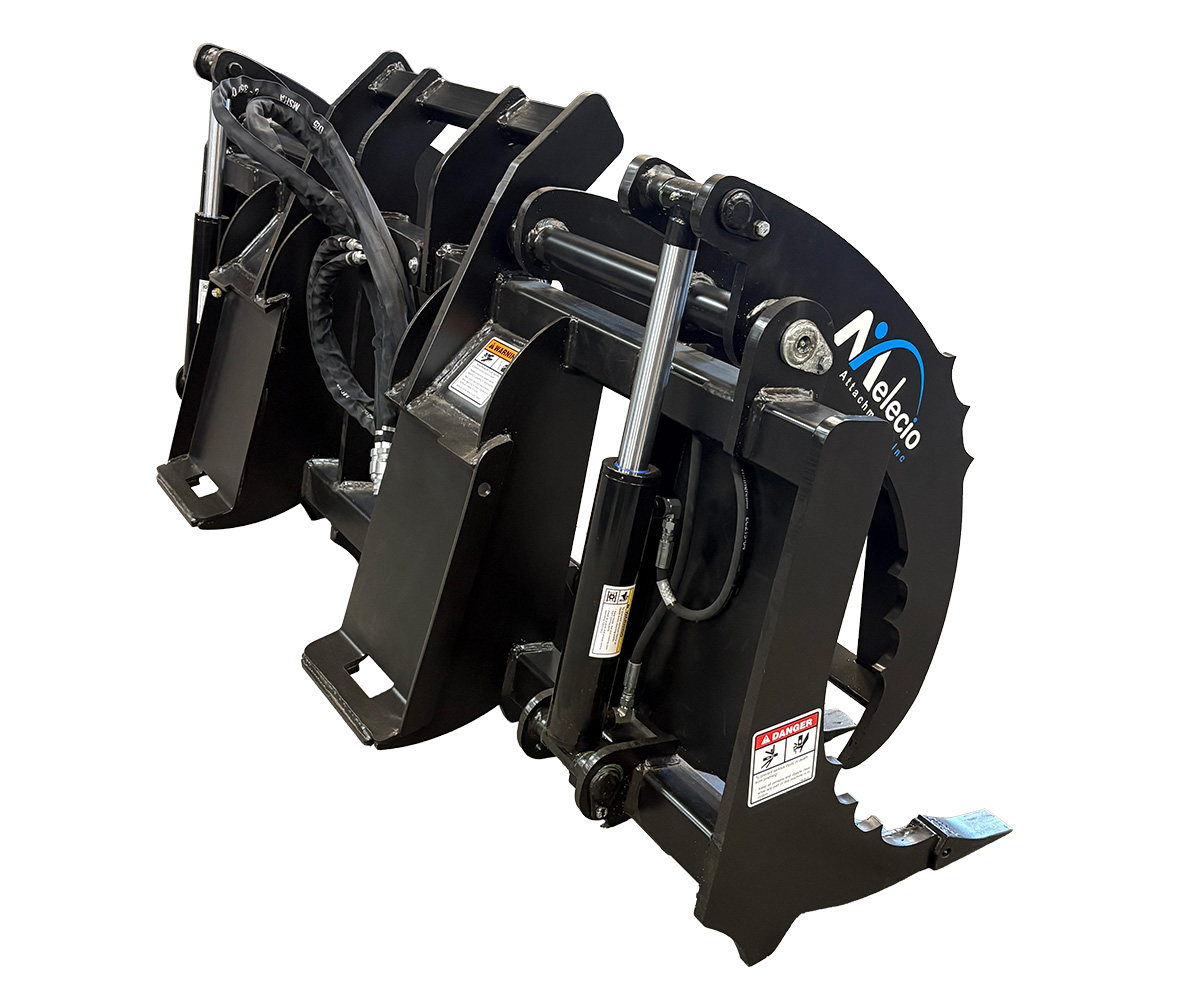

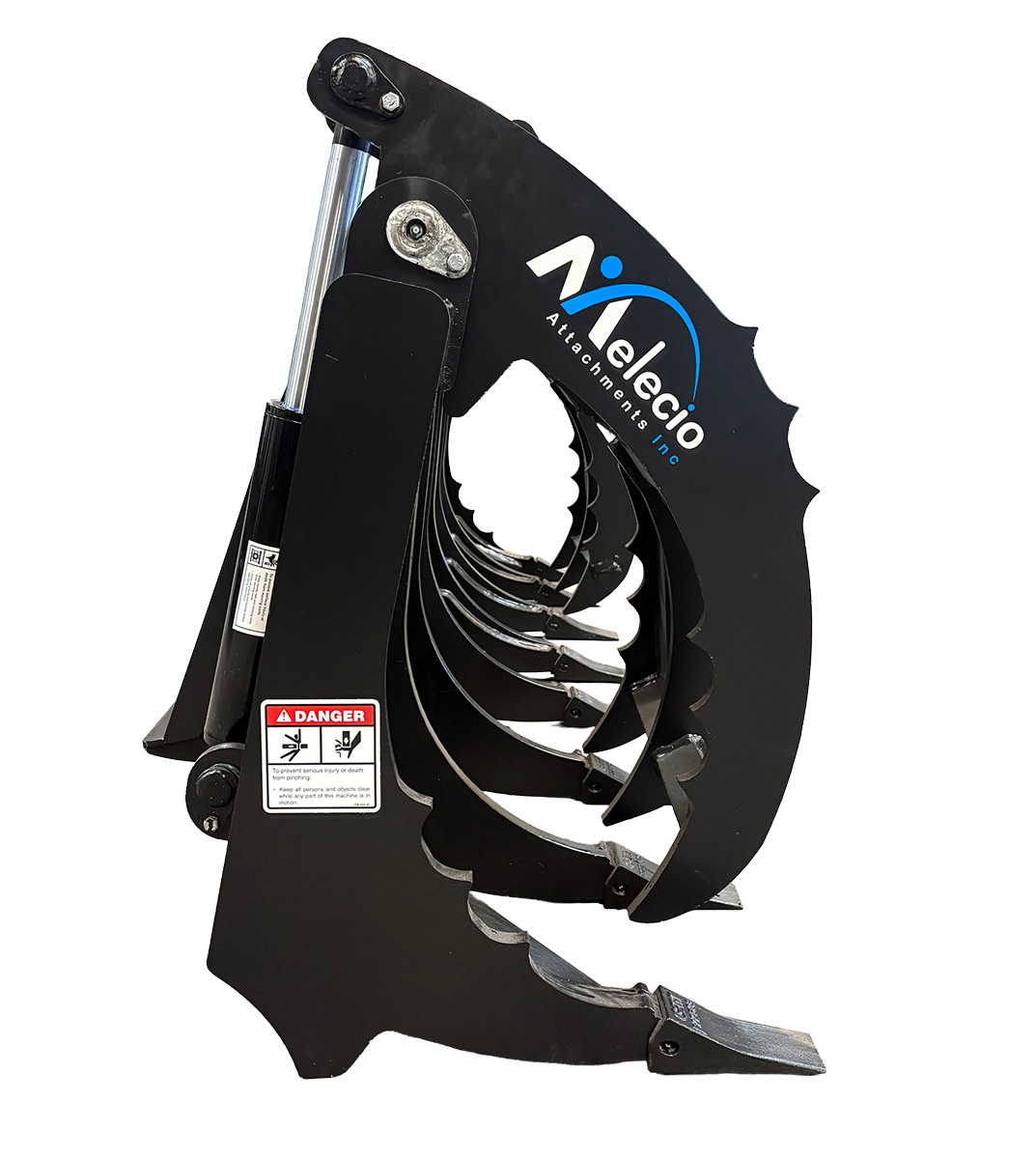

Utility Root Rake Grapple
Product Specification
Model | MCO9153076 | MCO9153084 |
---|---|---|
Grapple Width | 69.25” | 69.25” |
Rake Width | 76″ | 84” |
Height | 37″ | 37″ |
Weight | 890 lbs | 960 lbs |
Approx. Tine Spacing | 10¼” | 10¼” |
Grapple Open | 49” | 49” |
Built with high-strength 3/4” T1 steel, this attachment allows you to remove the toil and leave the soil at your job site with aggressive tine and grapple profiles that lock material in place and stabilize during transport. Replaceable tine teeth and metal backing to protect the hydraulic cylinders add further durability and longevity to this versatile product. The leading edge of the grapple travel in a range of motion that pulls material into the grapple area to optimize its large capacity for debris and brush.

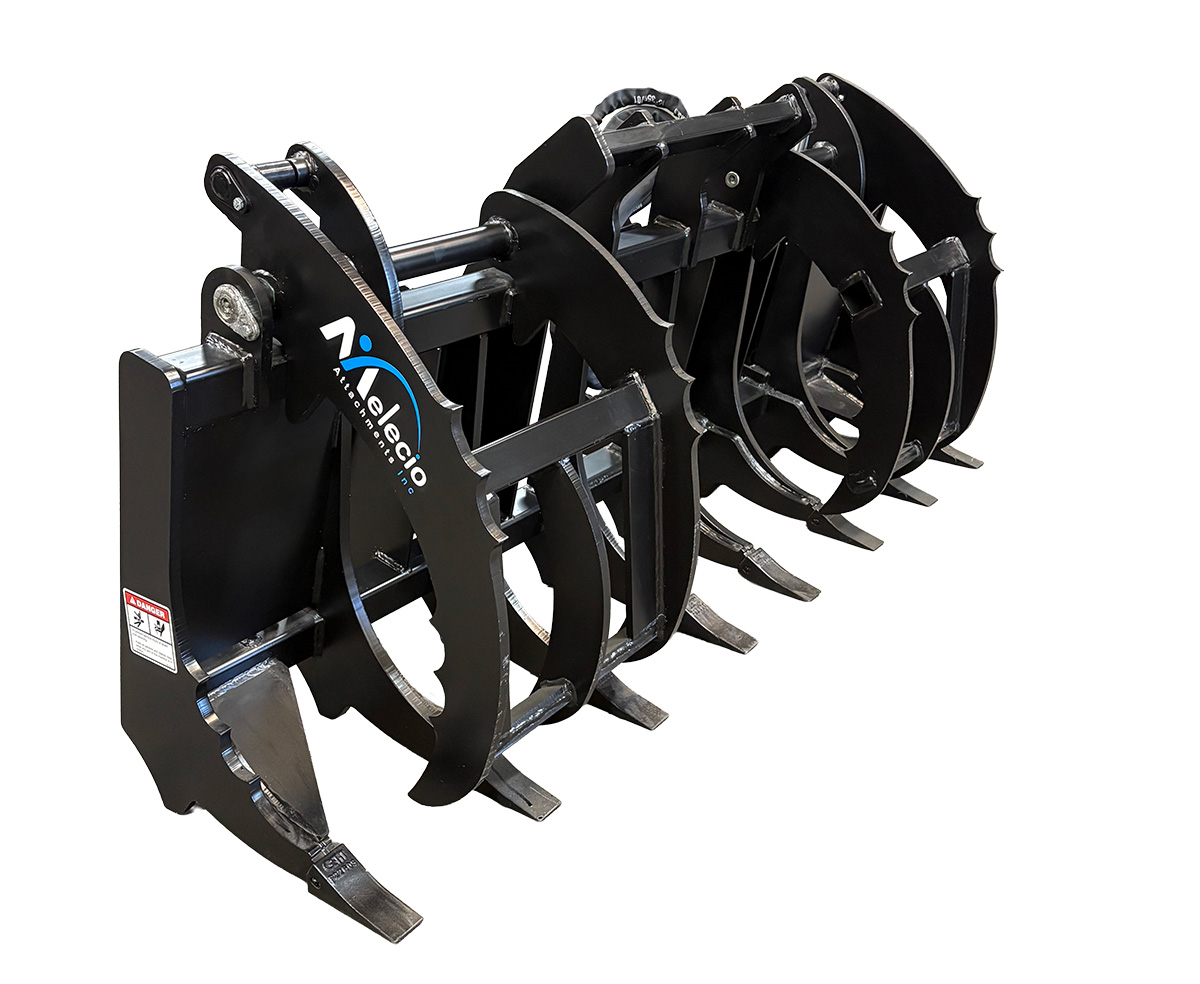

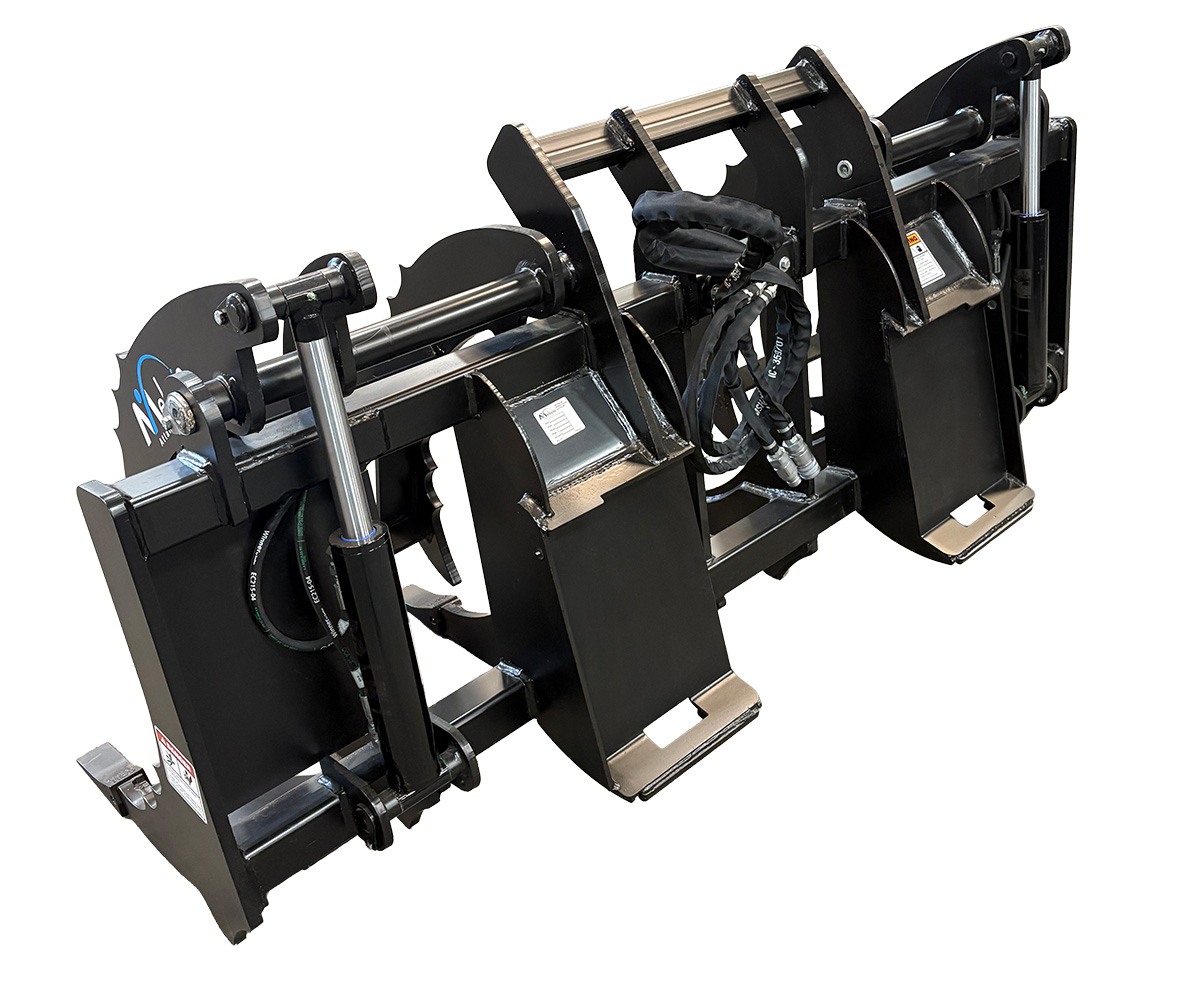

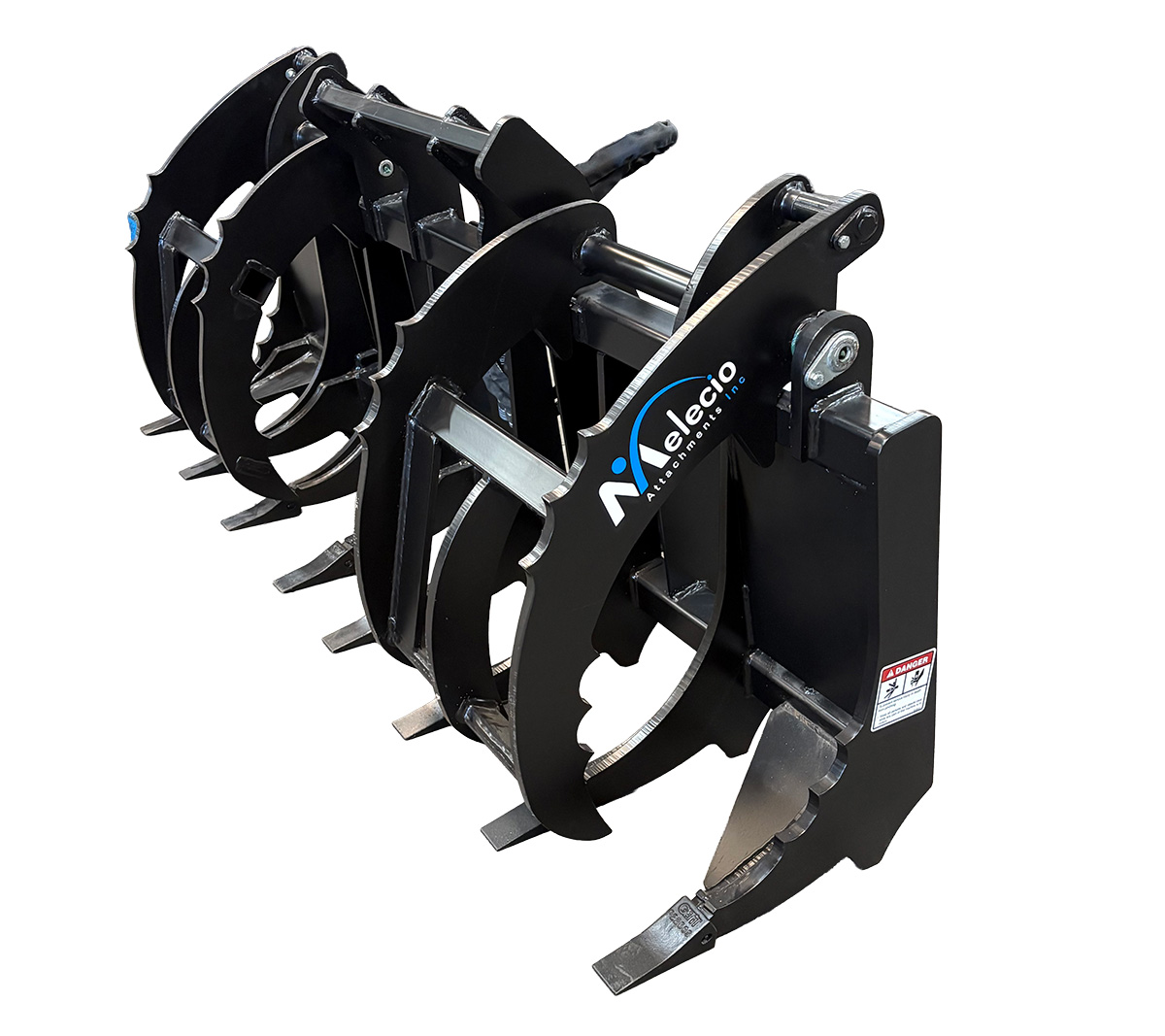

Construction Root Rake Grapple
Product Specification
Model | MCO9154076 | MCO9154084 |
---|---|---|
Grapple Width | 69.25” | 69.25” |
Rake Width | 76″ | 84” |
Height | 37″ | 37” |
Weight | 1280 lbs | 1340 lbs |
Approx. Tine Spacing | 10¼” | 10¼” |
Grapple Open | 49” | 49” |
This Skid Steer grapple is intended to attach to the fast attach system on your equipment. During land cleaning and landscaping chores, it efficiently captures and retains trash, roots, and other objects. Its adaptable and long-lasting design makes it a dependable alternative for a variety of jobs.
How Does Skid Steer Root Rake Grapple Works?
The John Deere Utility Root Rake Grapple works by attaching to the front of a compatible machine, such as a skid steer or compact tractor. Its strong, serrated tines penetrate and grab onto debris, roots, and other materials, allowing for easy clearing and loading. The hydraulic system provides precise control over the grapple’s movement, enabling efficient sorting and removal of debris. Its versatile design makes it ideal for landscaping, land clearing, and site preparation tasks.
