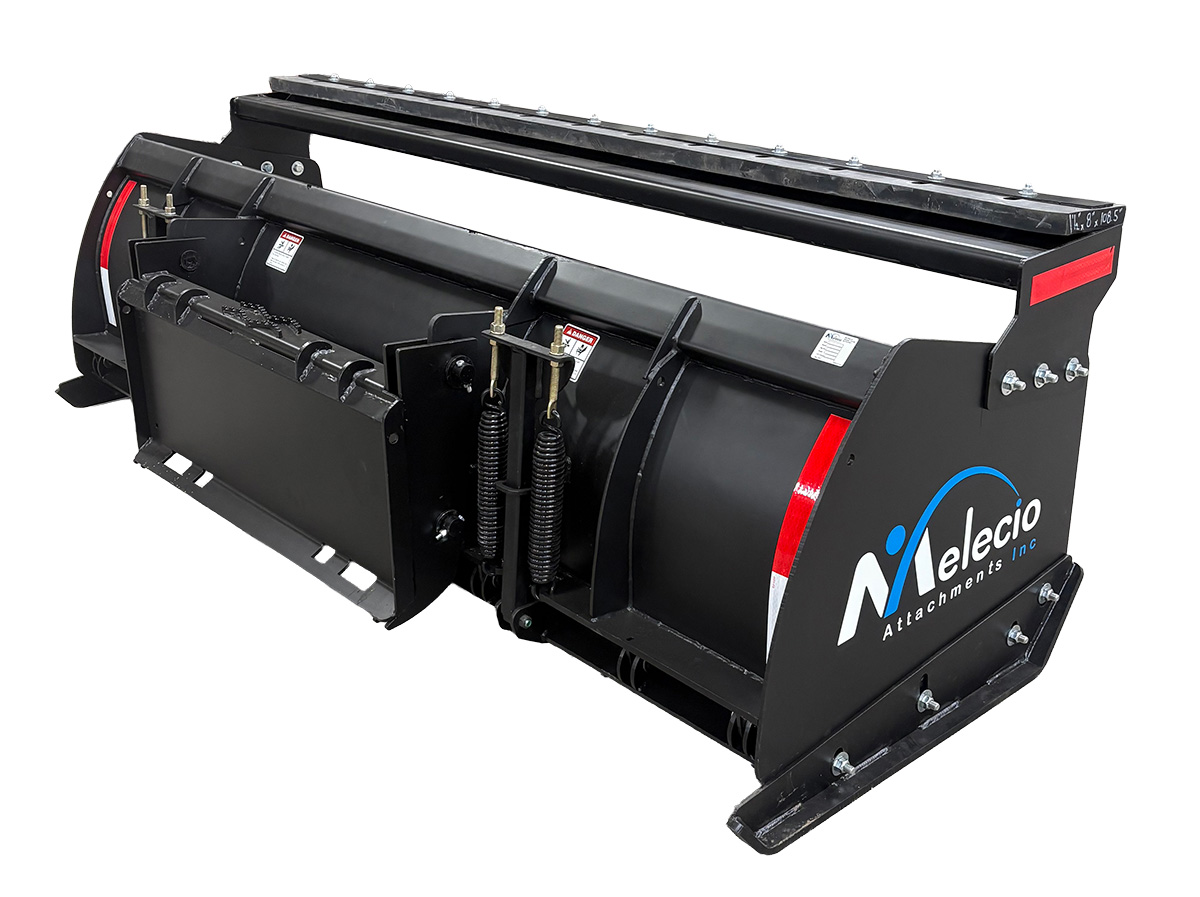

Skid Steer Trip Edge Snow Push

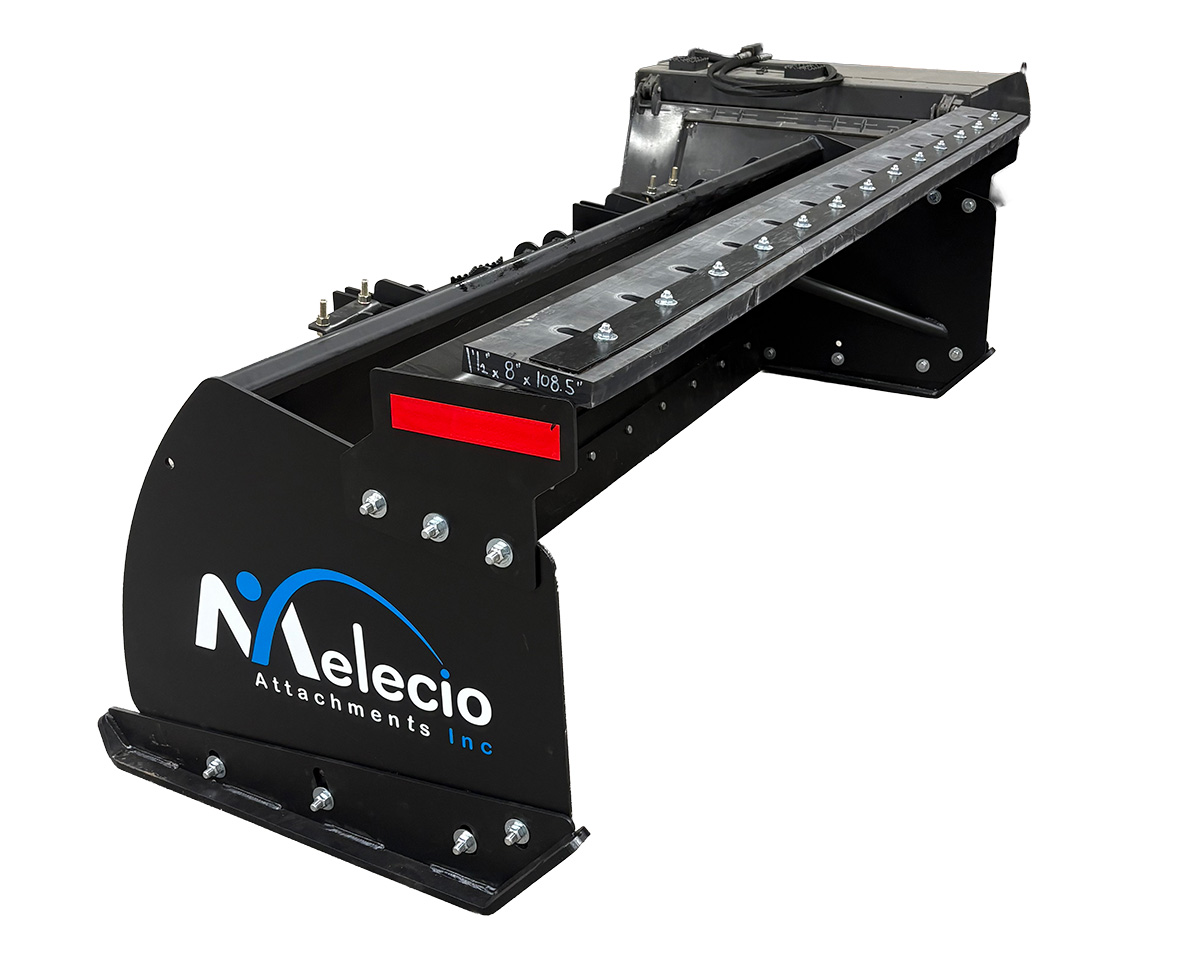

Skid Steer Trip Edge Snow Push - Image 2

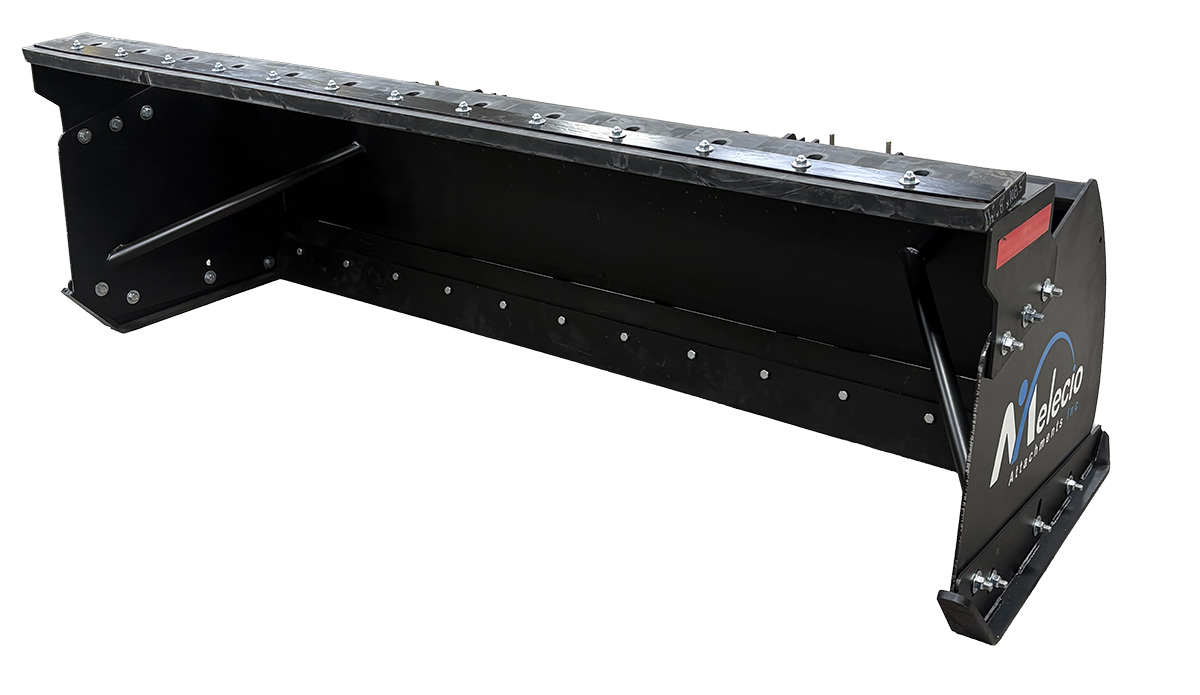

Skid Steer Trip Edge Snow Push - Image 3

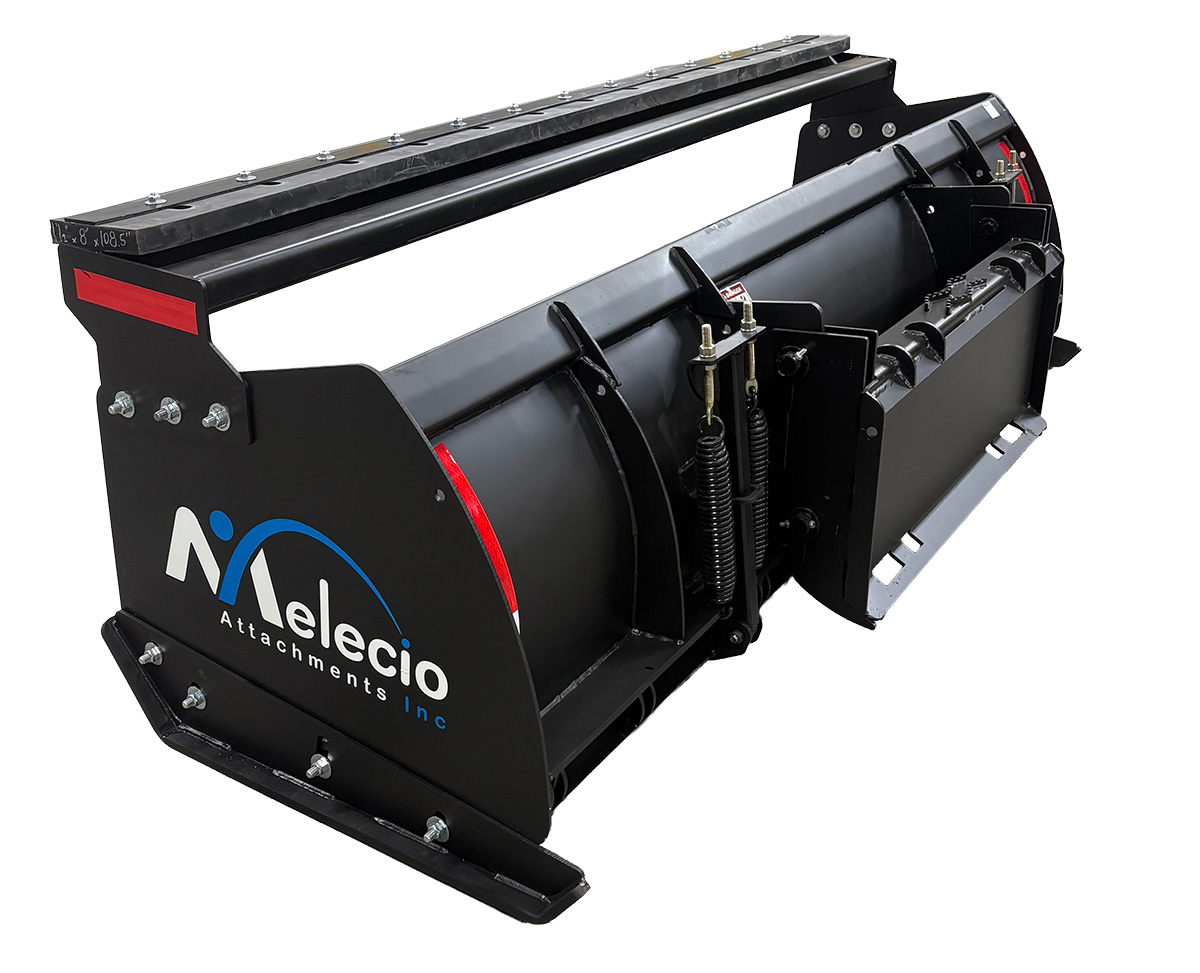

Skid Steer Trip Edge Snow Push - Image 4

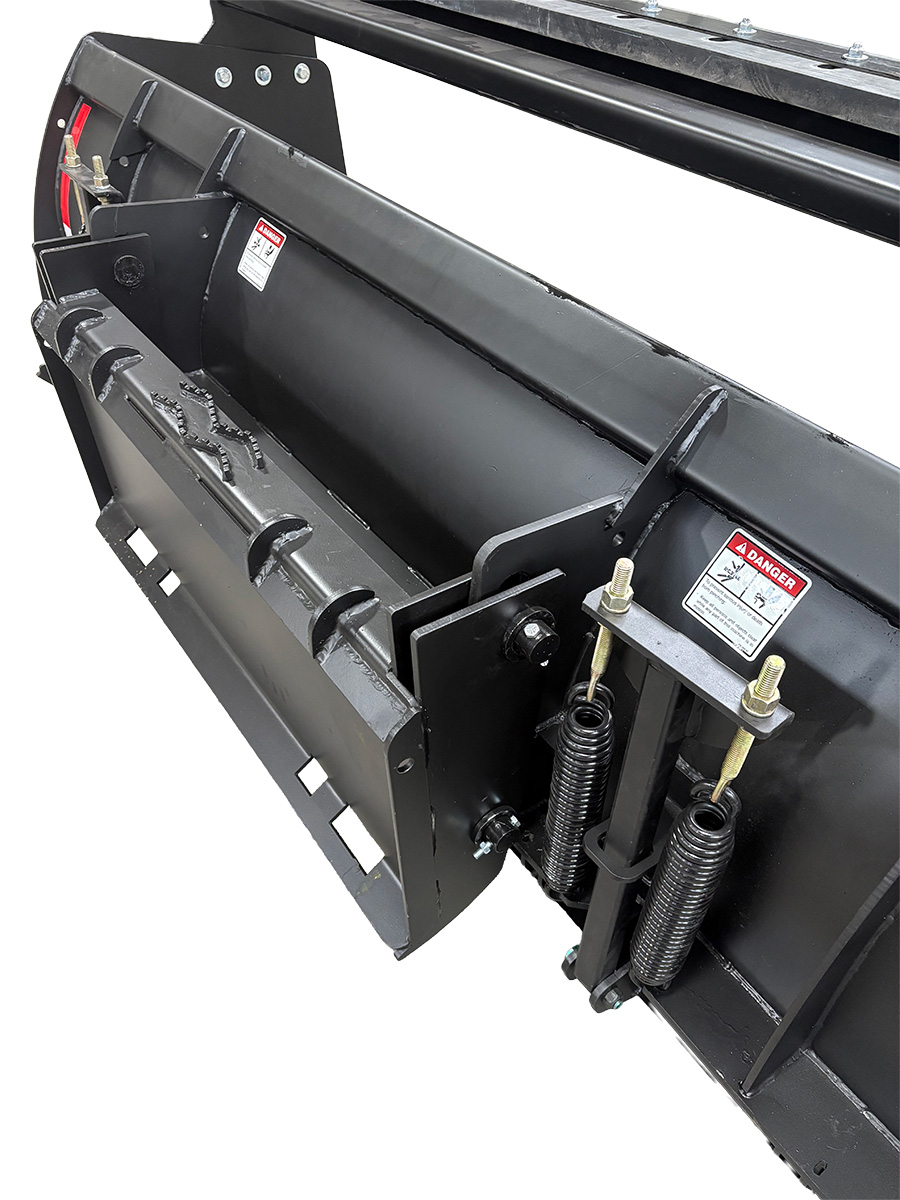

Skid Steer Trip Edge Snow Push - Image 5

Skid Steer Trip Edge Snow Push

  1. 4 Sectional Trip Edges on all Sizes
  2. Spring loaded trip edges
  3. AR400 skid shoes and cutting edges
  4. Skid shoes and wear edges are replaceable with just a few bolts
  5. Commercial Grade
  • Trip Edge Design: The innovative trip edge design allows the blade to trip forward when it hits obstacles, reducing impact and preventing damage.
  • Efficient Snow Clearing: The snow push efficiently clears snow with each pass, minimizing the number of passes needed for effective snow removal.
  • Durable Construction: Built with high-quality materials, the snow push is designed to withstand the rigors of heavy snow clearing and extended use.
Play Video



Product Specification

Model MCO610TE96 MCO610TE10 MCO610TE12 MCO610TE14
Width 96” 10’ 12’ 14’
Height 30” 30’ 30’ 30’
Depth 32” 32’ 32’ 32’
Weight 1050 lbs 1164 lbs 1176 lbs 1188 lbs
Cutting Edge 1/2″ x 6″ 1/2″ x 6″ 1/2″ x 6″ 1/2″ x 6″
Trip Springs 8 8 8 8



The trip edge snow pusher is intended to be simply attached to your skid steer loader. Its unique trip edge design causes the blade to trip forward when it comes into contact with an impediment, reducing damage and assuring safe operation. This snow pusher clears snow swiftly and with little effort, making it a perfect tool for winter snow removal activities.

How Does Skid Steer Trip Edge Snow Push Works?

Skid Steer Trip Edge Snow Push works by attaching to a skid steer loader. As the loader pushes the snow pusher forward, the trip edge design allows the blade to trip over obstacles, reducing impact and preventing damage. This mechanism ensures efficient snow clearing while protecting the equipment and surfaces. The adjustable skid shoes maintain an even clearance, and the durable construction withstands heavy use, making it a reliable choice for snow removal.

Select-model-no

MCO610TE96, MCO610TE10, MCO610TE12, MCO610TE14
